The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 736-116 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat 1 Class B, making it suitable for use in applications such as rail, transportation, and industrial control systems.
The 736-116 connector has a rating of IP67, which means it is protected against temporary immersion in water and can withstand outdoor use. However, it's essential to ensure that the connector is properly sealed and installed to maintain its environmental rating.
Yes, the 736-116 connector is designed to accept stranded wire. However, it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.
The 736-116 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including industrial control systems, transportation, and building automation.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
736-116 Overview

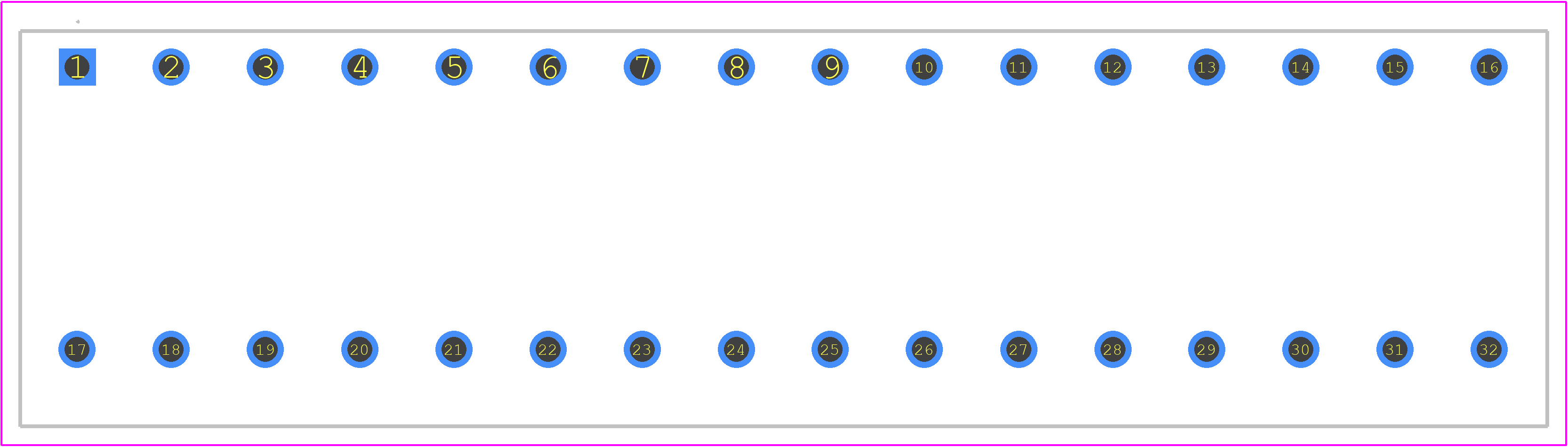

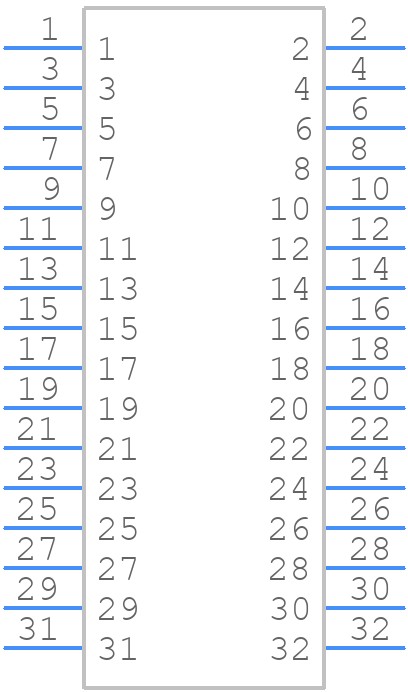

Use the download button to access the 736-116 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 736-1,
or try a keyword search, such as Terminals and Terminal Blocks
