736-204 - Wago

Description: Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 8-pole; CAGE CLAMP®

Download 736-204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

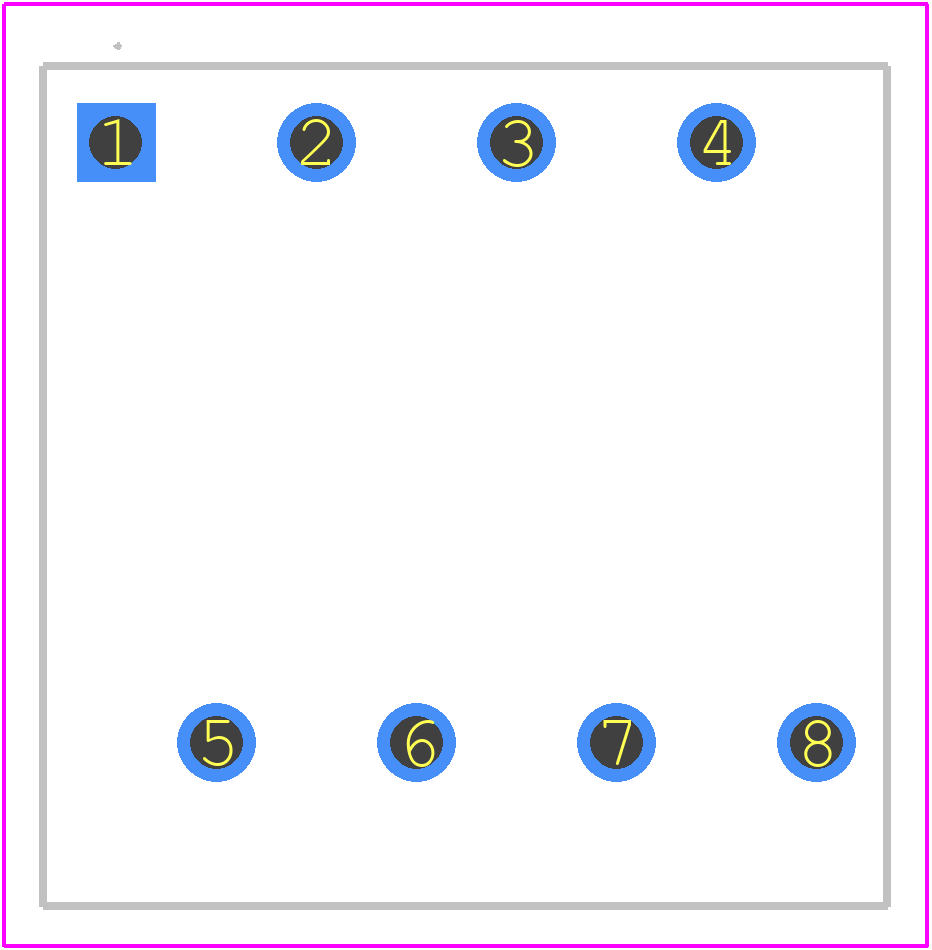

736-204 - Wago PCB footprint - Other - Other - 736-204-1
click to zoom
3D Models
736-204 - Wago  - 3D model - Other - 736-204-1
click to zoom

736-204 Details

  • Manufacturer Part Number:

    736-204

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    5.87

  • Additional Feature:

    FRONT ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

736-204 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the WAGO 736-204 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's essential to ensure proper mounting and screwing to prevent damage.
  • The WAGO 736-204 is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidities up to 95% RH. However, it's crucial to consider the specific application and environmental conditions to ensure reliable operation.
  • While the datasheet recommends AWG 24-18 wire sizes, the connector can accommodate other wire sizes. However, it's essential to ensure the wire size and insulation meet the connector's specifications and do not compromise the connection's reliability.
  • Follow WAGO's recommended wire stripping and insulation guidelines, which typically involve stripping the wire to a length of 4-6 mm and ensuring the insulation is not damaged or compromised during the connection process.
