The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 736-306 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 1, Class B, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) at frequencies between 10 Hz and 2000 Hz.
The 736-306 connector has a rating of IP67, which means it is protected against temporary immersion in water (up to 1 meter for 30 minutes) and can withstand exposure to dust and moisture. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor applications.
Yes, the 736-306 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14). However, it's crucial to follow the recommended wire preparation and termination procedures to ensure reliable connections.
Yes, the 736-306 connector is part of the WAGO TOPJOB S family of connectors, which are designed to be compatible with each other. This allows for flexibility in design and assembly, as well as easy integration with other WAGO products.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
736-306 Overview

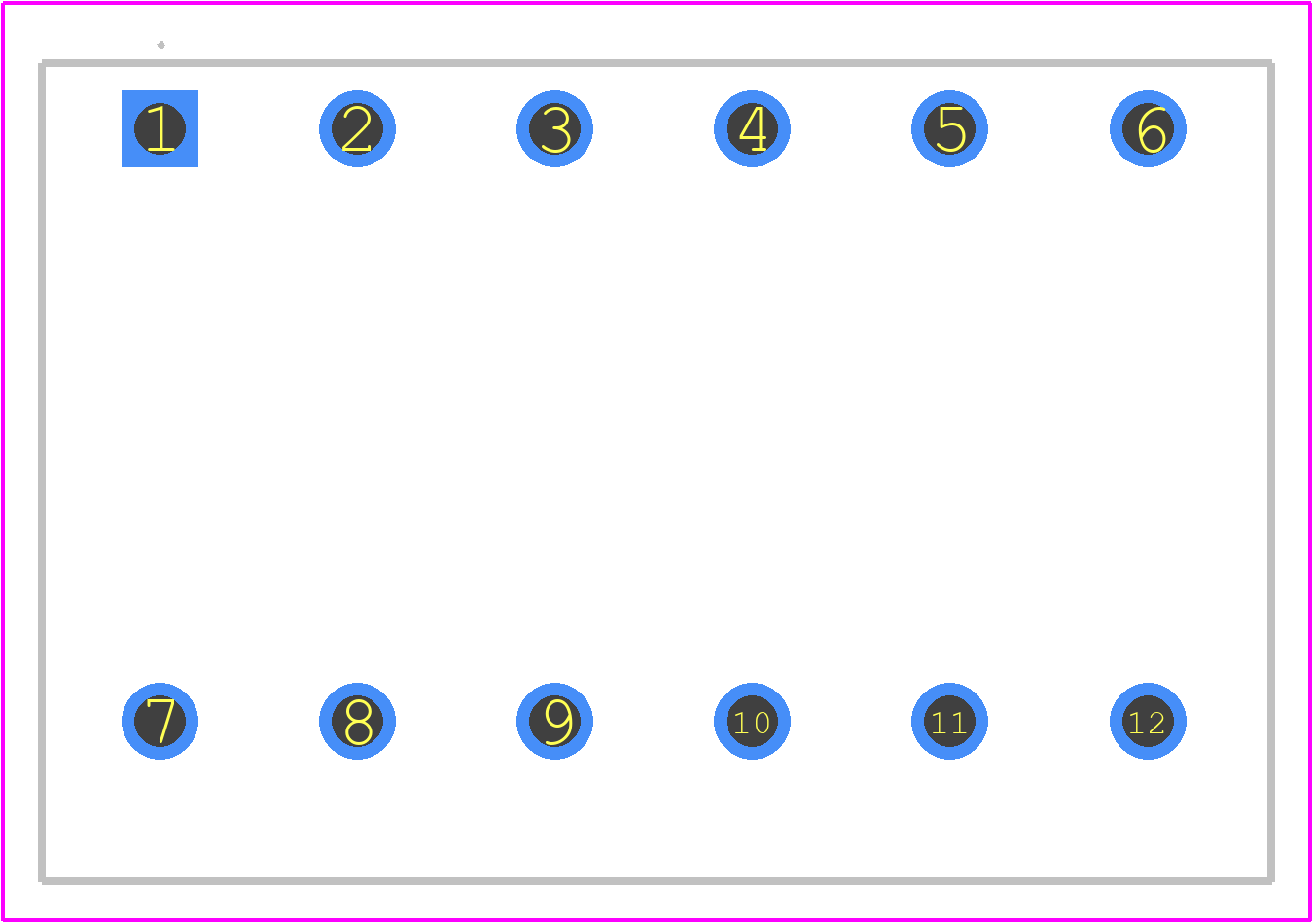

Use the download button to access the 736-306 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 736-3,
or try a keyword search, such as Terminals and Terminal Blocks
