736-408 - Wago

Description: Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5.08 mm; 16-pole; CAGE CLAMP®

Download 736-408 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
736-408 - Wago - PCB symbol
click to zoom
PCB Footprints

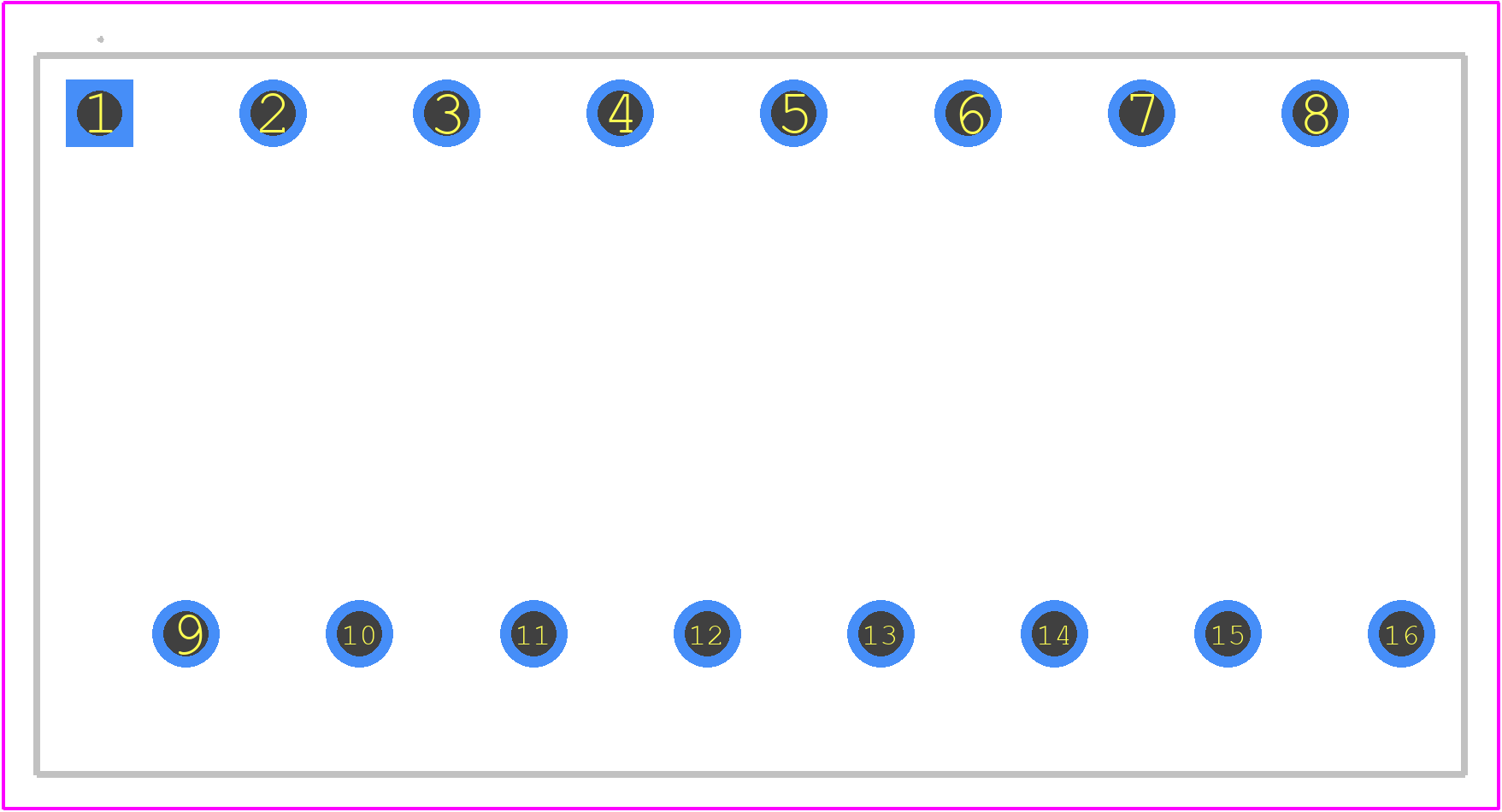

736-408 - Wago PCB footprint - Other - Other - 736-408-1
click to zoom
3D Models
736-408 - Wago - 3D model - Other - 736-408-1
click to zoom

736-408 Details

  • Manufacturer Part Number:

    736-408

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.89

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    16

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

736-408 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 736-408 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 1, Class B.
  • Yes, the 736-408 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress.
  • Yes, the 736-408 connector is suitable for use with stranded wire. However, it's recommended to use a ferrule or wire end sleeve to ensure a secure connection.
  • The operating temperature range of the 736-408 connector is -40°C to 125°C (-40°F to 257°F).
