The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) to ensure secure mounting without damaging the PCB or terminal block.
While the datasheet specifies 24-12 AWG, the terminal block can accommodate smaller wire sizes with the use of wire ferrules or adaptors. However, it's essential to ensure the wire insulation does not exceed the maximum diameter of 2.5 mm (0.098 in) to prevent damage to the terminal block or wire.
The 737-104 is designed for general industrial applications and may not be suitable for high-vibration or high-shock environments. For such applications, consider using WAGO's vibration-resistant terminal blocks, such as the 737-104/V, which are specifically designed to withstand harsh conditions.
The 737-104 is not designed for use in hazardous locations or explosive atmospheres. If you need a terminal block for such applications, look for WAGO products with specific certifications, such as ATEX or IECEx, which ensure compliance with relevant safety standards.
The 737-104 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for most industrial applications. However, it's essential to consider the temperature rating of the wire and other components in your system to ensure overall reliability.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
737-104 Overview

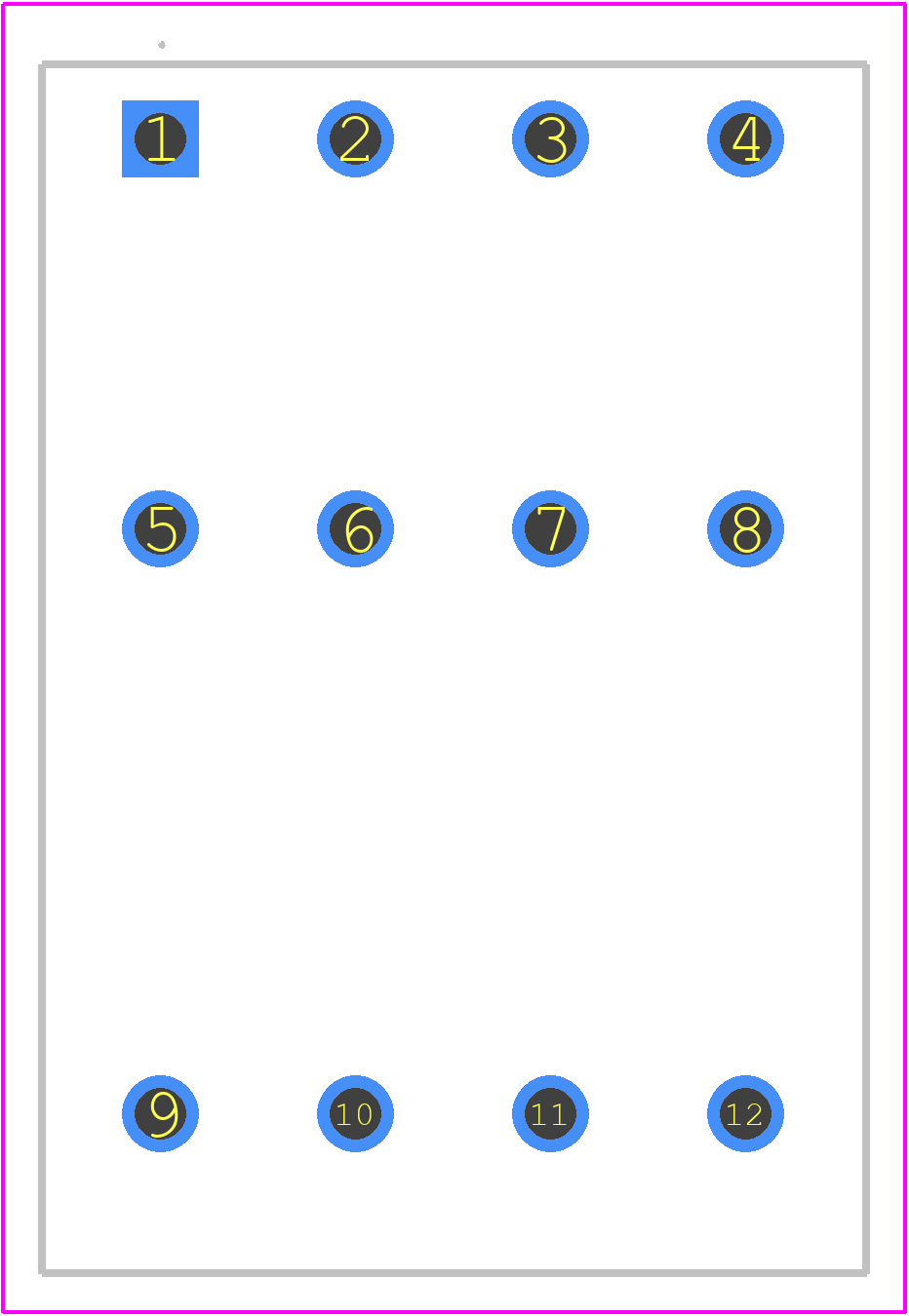

Use the download button to access the 737-104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 737-1,
or try a keyword search, such as Terminals and Terminal Blocks
