737-112 - Wago

Description: Triple-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 36-pole; CAGE CLAMP®

Download 737-112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

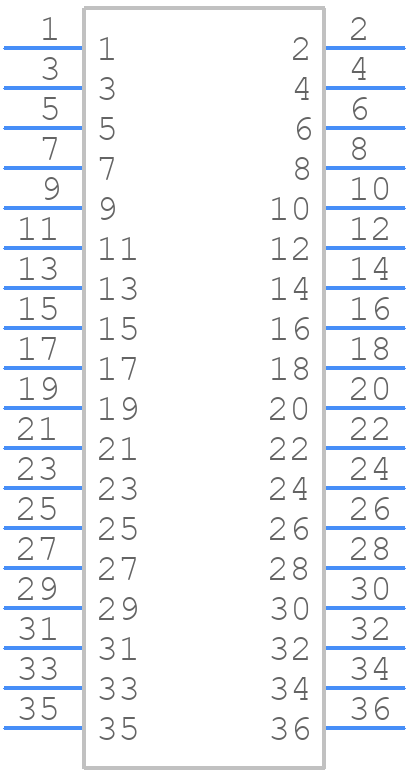

737-112 - Wago - PCB symbol
click to zoom
PCB Footprints

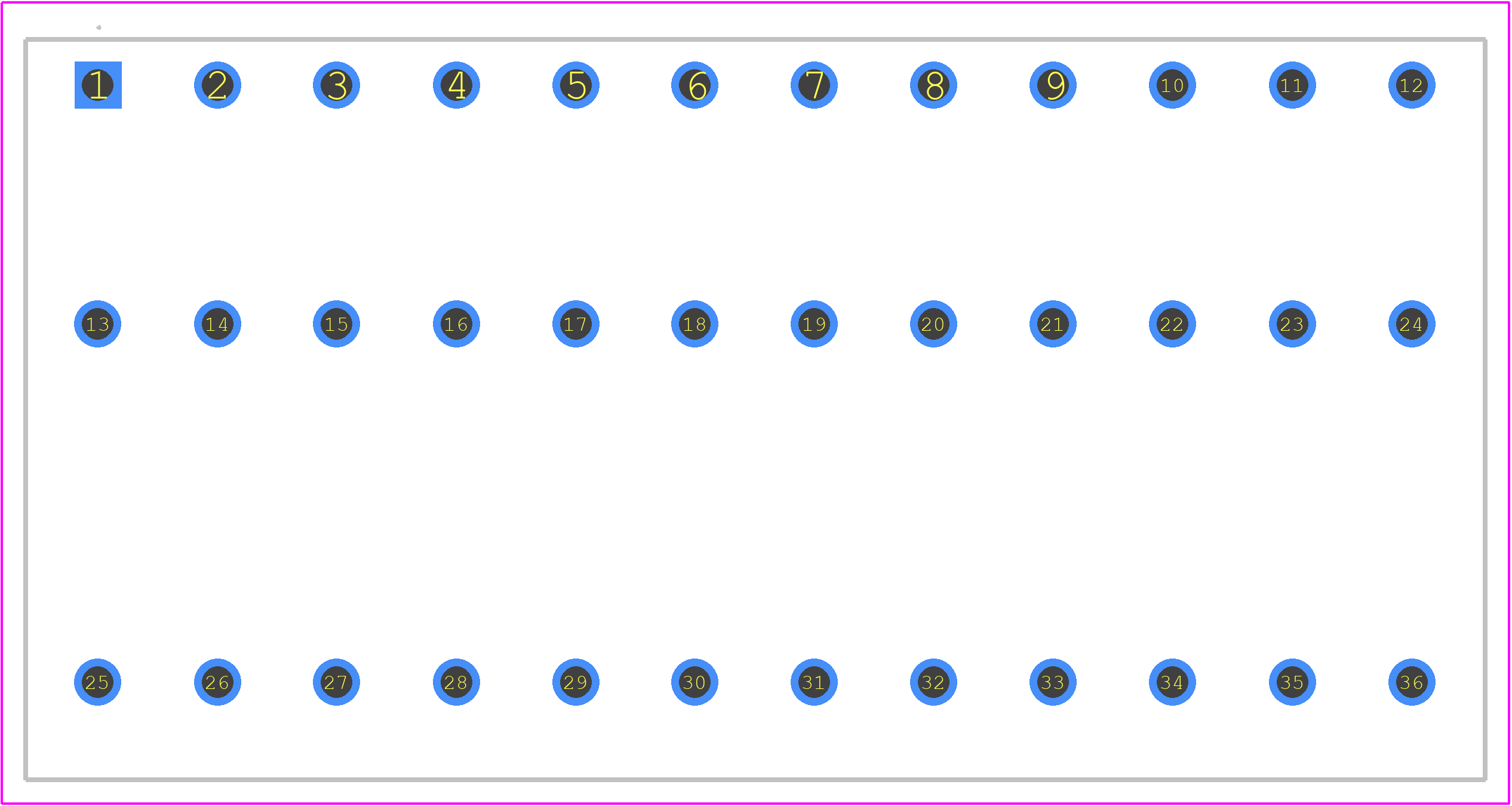

737-112 - Wago PCB footprint - Other - Other - 737-112-1
click to zoom
3D Models
737-112 - Wago - 3D model - Other - 737-112-1
click to zoom

737-112 Details

  • Manufacturer Part Number:

    737-112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    3

  • Number of Rows:

    3

  • Number of Ways:

    36

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

737-112 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 737-112 connector is designed to withstand high-vibration environments. It meets the requirements of IEC 61373 Category 1, Class B, and EN 50155.
  • Yes, the 737-112 connector is designed to operate in humid and wet environments. It meets the requirements of IP67 and IP69K, making it suitable for use in harsh industrial environments.
  • It's not recommended to use wire sizes other than those specified in the datasheet. However, WAGO provides a wire size conversion chart that can help you determine the equivalent wire size for your specific application.
  • The maximum operating temperature for the 737-112 connector is 120°C (248°F) for a short period (e.g., during a fault condition). The recommended operating temperature range is -40°C to 85°C (-40°F to 185°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

737-112 Overview

Use the download button to access the 737-112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 737-1, or try a keyword search, such as Terminals and Terminal Blocks
