The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
Yes, the WAGO 737-116 is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
While the datasheet specifies AWG 20-14, the terminal block can accommodate smaller wire sizes, such as AWG 16 or 18, but may require additional preparation or accessories. Consult WAGO's application notes or contact their support team for guidance.
To ensure proper wire strain relief, use WAGO's recommended wire management accessories, such as cable ties or wire clamps, and follow their installation guidelines to prevent wire damage or disconnection.
The WAGO 737-116 is designed to operate in a wide temperature range (-40°C to 120°C) and can withstand high humidity, but it's essential to follow WAGO's environmental guidelines and consider additional protection measures, such as conformal coating or sealing, for extreme environments.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
737-116 Overview

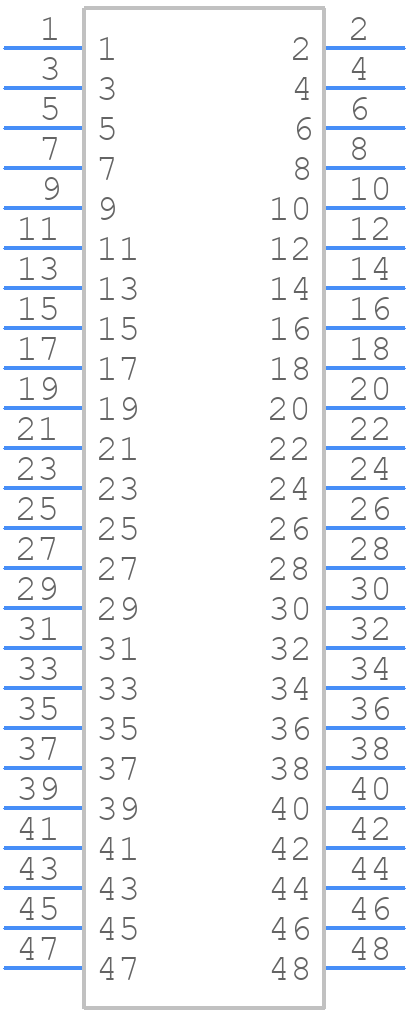

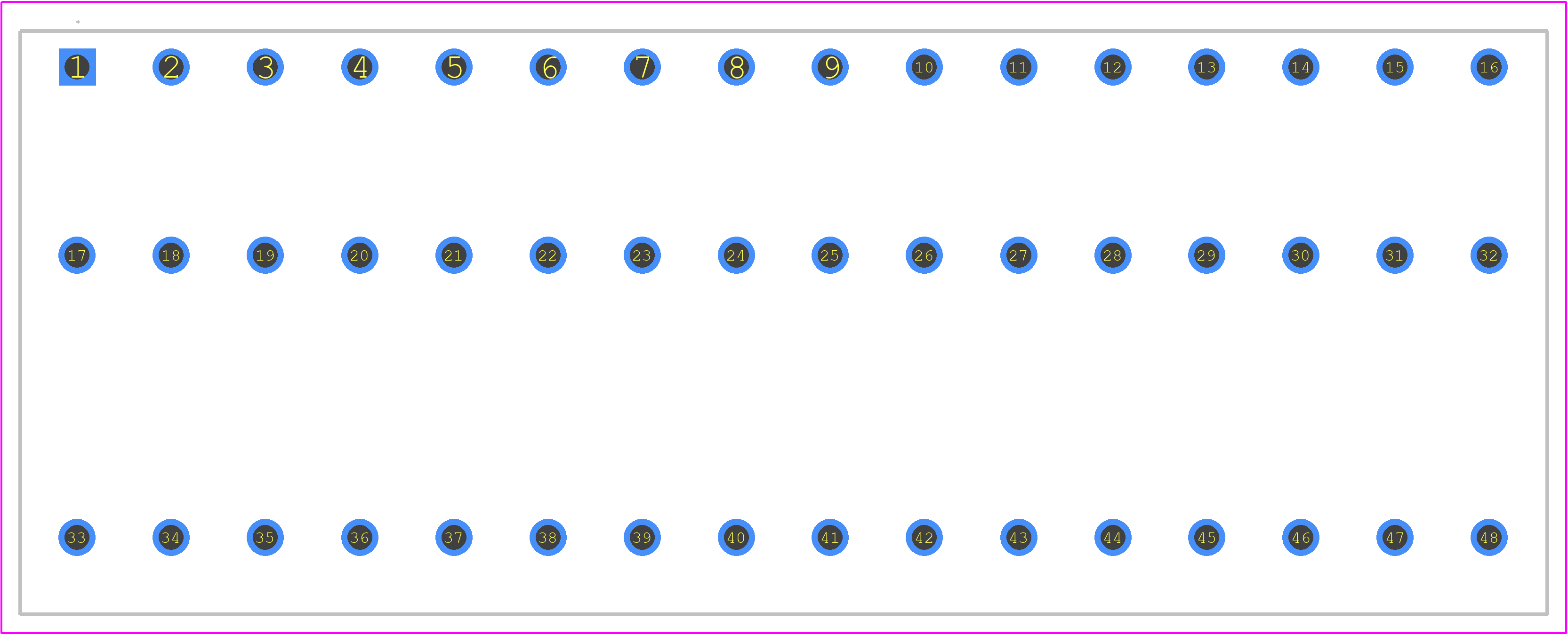

Use the download button to access the 737-116 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 737-1,
or try a keyword search, such as Terminals and Terminal Blocks
