739-105 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 5-pole; CAGE CLAMP®

Download 739-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
739-105 - Wago - PCB symbol
click to zoom
PCB Footprints

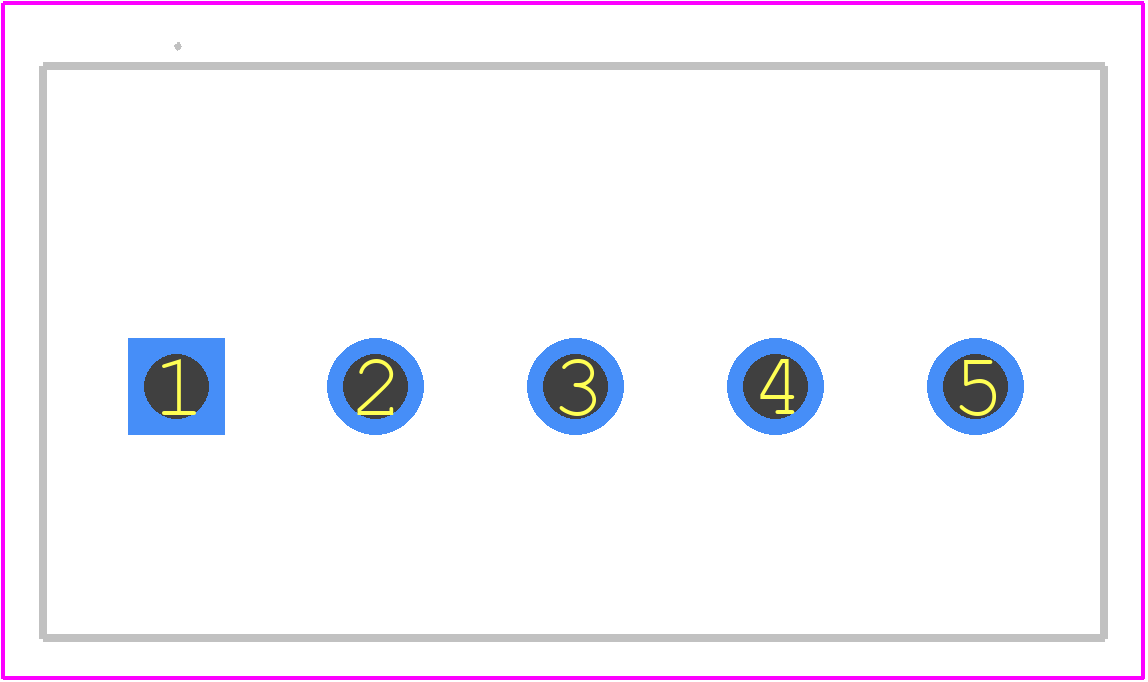

739-105 - Wago PCB footprint - Other - Other - 739-105-1
click to zoom
3D Models
739-105 - Wago - 3D model - Other - 739-105-1
click to zoom

739-105 Details

  • Manufacturer Part Number:

    739-105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.77

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    12 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

739-105 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 739-105 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 739-105 connector is designed to withstand high-vibration applications. It meets the vibration requirements of IEC 61373 Category 1, Class B, and EN 50155.
  • Yes, the 739-105 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • Yes, the 739-105 connector is suitable for use with stranded wire. However, it's recommended to use a wire ferrule to ensure a secure connection.
  • The operating temperature range of the 739-105 connector is -40°C to 125°C (-40°F to 257°F).
