74030 footprint, schematic symbol and 3D model by MYRRA

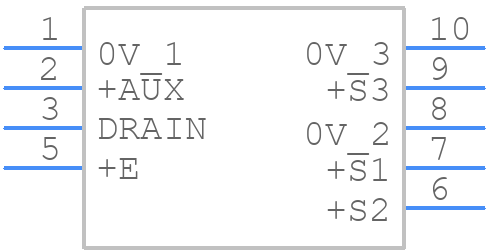

Symbol

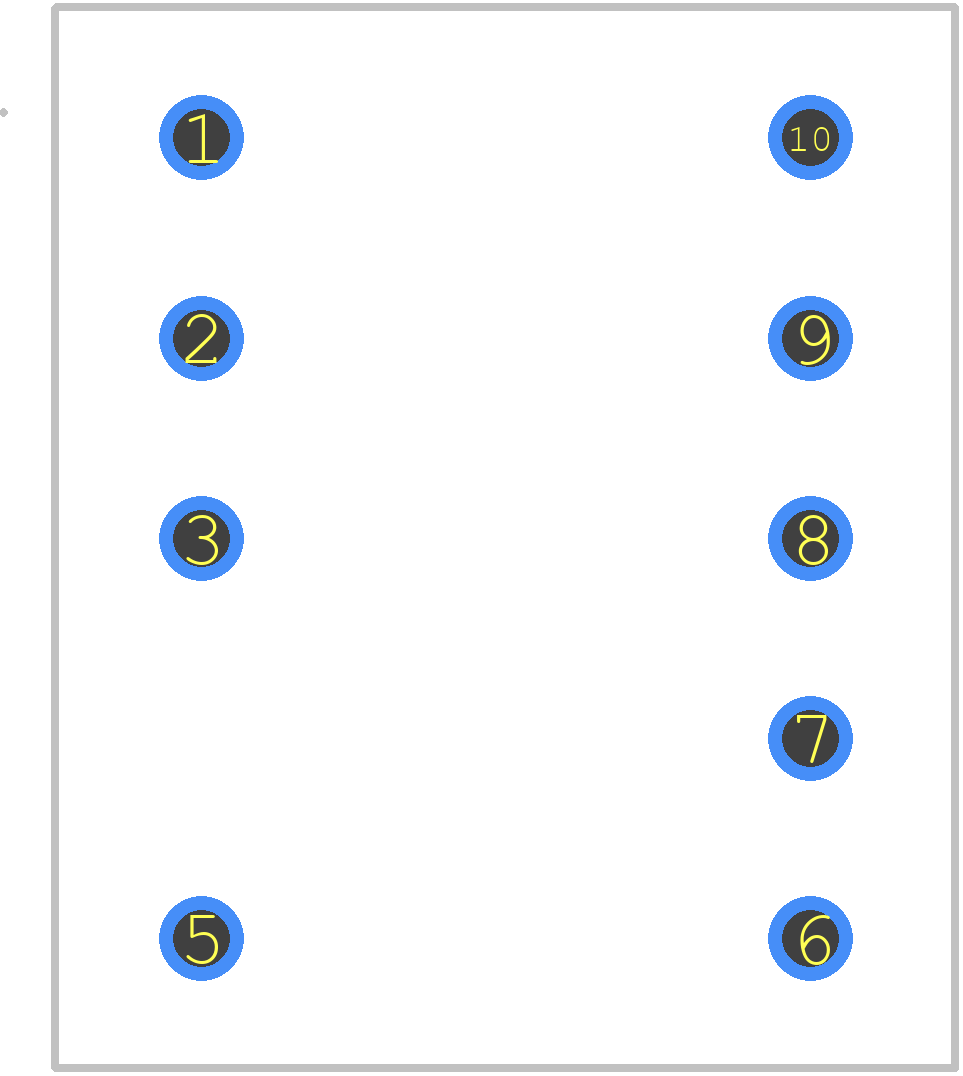

PCB Footprints

3D Models

74030 Details

A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended.
Use a decoupling capacitor (e.g., 10uF) close to the device, and ensure a stable power supply with minimal ripple (<50mV).
The maximum allowed voltage on the input pins is 5.5V, exceeding this may cause damage to the device.
Use ESD-safe materials, handle devices by the body or pins, and ground yourself before handling. Avoid touching pins or components.
Store the device in a dry, cool place (<30°C, <60% RH) in its original packaging or an ESD-safe container.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 74030 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Pulse/Datacom Transformers
