741-135 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5 mm; 5-pole; CAGE CLAMP®; clamping collar

Download 741-135 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
741-135 - Wago - PCB symbol
click to zoom
PCB Footprints

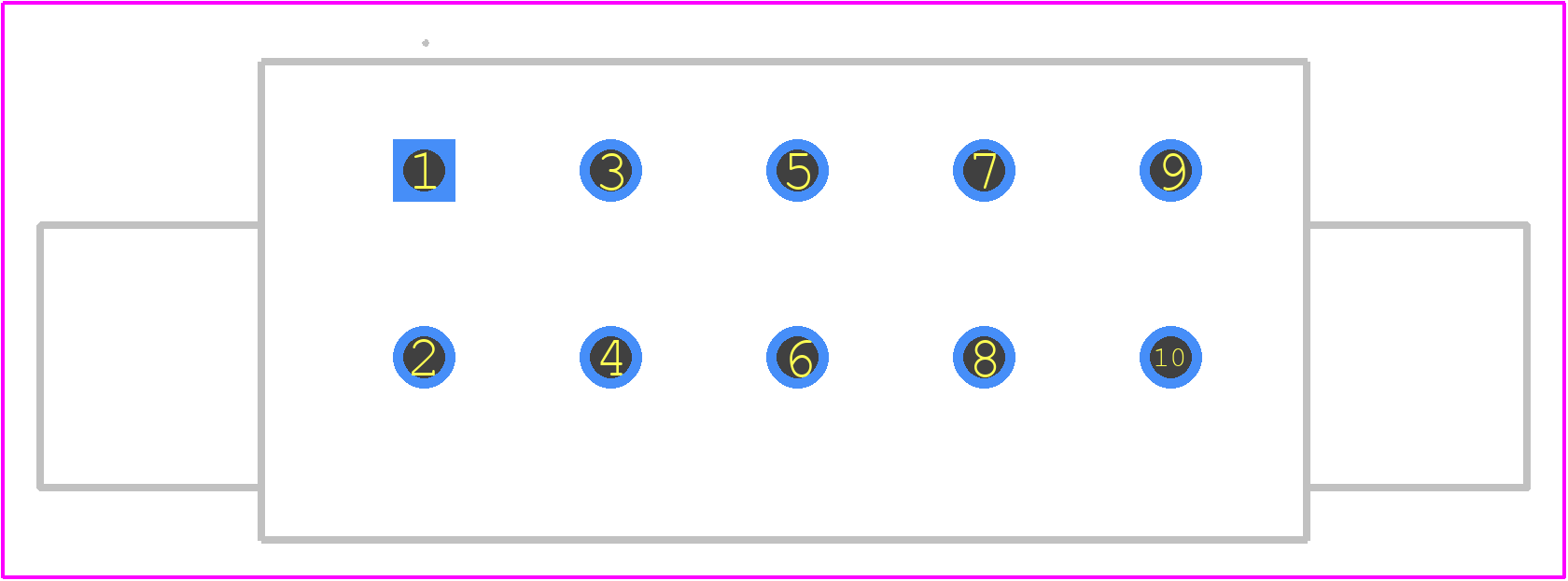

741-135 - Wago PCB footprint - Other - Other - 741-135-1
click to zoom
3D Models
741-135 - Wago - 3D model - Other - 741-135-1
click to zoom

741-135 Details

  • Manufacturer Part Number:

    741-135

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    16 A

  • Rated Voltage:

    250 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

741-135 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) according to WAGO's application notes.
  • Yes, the 741-135 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 1 Class B, which includes sinusoidal vibration up to 10 g and random vibration up to 10 g²/Hz.
  • Yes, the 741-135 connector has a IP67 rating, which means it is protected against temporary immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and cable management to maintain the IP67 rating.
  • Yes, the 741-135 connector is designed to accommodate cables with cross-sections ranging from 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14). However, it's crucial to follow WAGO's cable preparation and termination guidelines to ensure reliable connections.
  • Yes, the 741-135 connector is part of WAGO's TOPJOB S family and is compatible with other products in the same family, including the 741-135/006-102 and 741-135/006-202 connectors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

741-135 Overview

Use the download button to access the 741-135 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 741-1, or try a keyword search, such as Terminals and Terminal Blocks
