741-508 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 10 mm; 8-pole; CAGE CLAMP®

Download 741-508 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

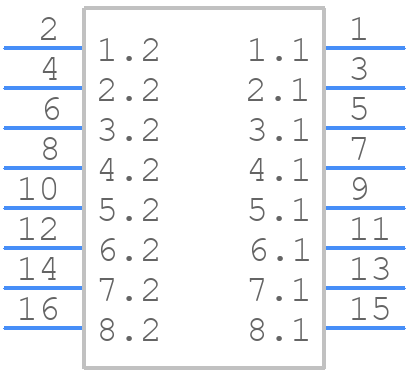

741-508 - Wago - PCB symbol
click to zoom
PCB Footprints

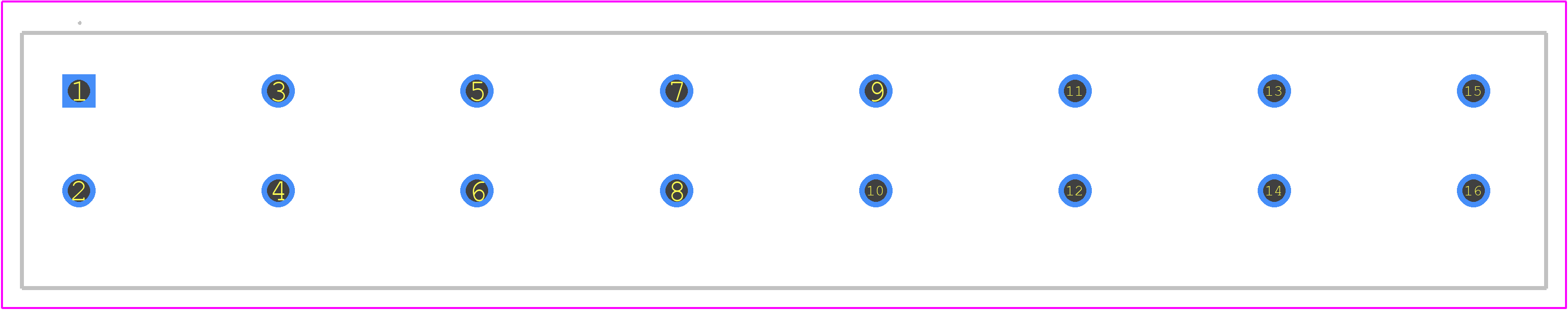

741-508 - Wago PCB footprint - Other - Other - 741-508-1
click to zoom
3D Models
741-508 - Wago - 3D model - Other - 741-508-1
click to zoom

741-508 Details

  • Manufacturer Part Number:

    741-508

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.83

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

741-508 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 741-508 is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 741-508 is designed to withstand high-vibration environments. It meets the vibration resistance requirements of IEC 60068-2-6.
  • Yes, the 741-508 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
  • Yes, the 741-508 is designed to accept both solid and stranded wire. However, it's essential to follow the recommended wire preparation and termination procedures.
  • The 741-508 has an operating temperature range of -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

741-508 Overview

Use the download button to access the 741-508 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 741-5, or try a keyword search, such as Terminals and Terminal Blocks
