74164-0110 - Molex

Description: Headers & Wire Housings CGrid R/A Shrd Hdr w/pg Tin 10Ckt

Download 74164-0110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
74164-0110 - Molex - PCB symbol
click to zoom

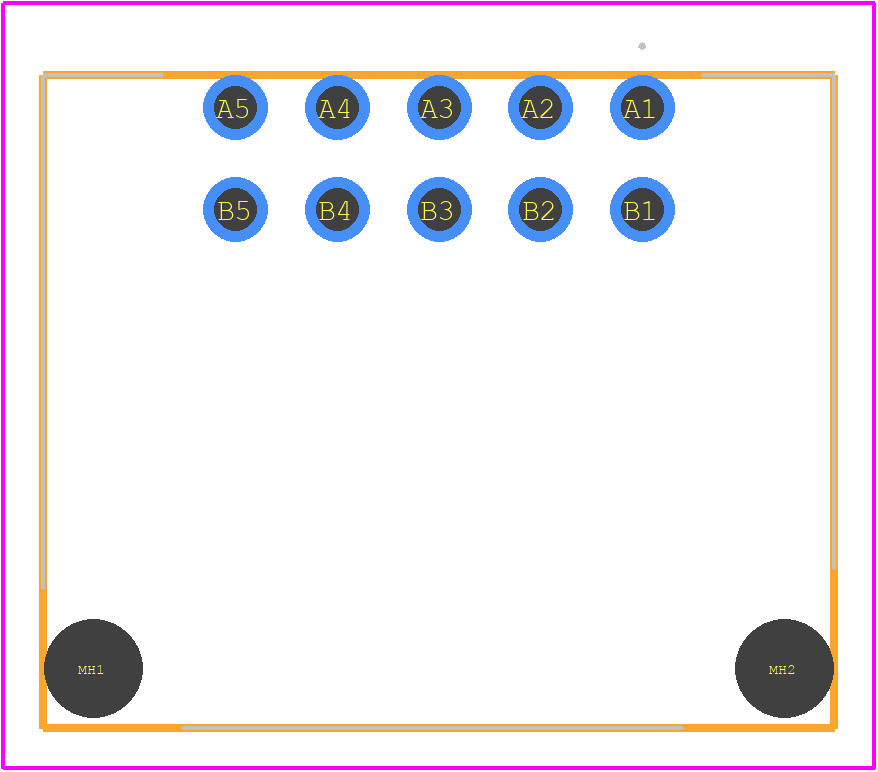

PCB Footprints
74164-0110 - Molex PCB footprint - Other - Other - 74164-0110-2
click to zoom
3D Models
74164-0110 - Molex - 3D model - Other - 74164-0110-2
click to zoom

74164-0110 Details

  • Manufacturer Part Number:

    74164-0110

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.42 inch

  • Body Depth:

    0.639 inch

  • Body Length:

    0.78 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Bright Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    25 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    150u inch

  • Rated Current (Signal):

    2.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

74164-0110 Frequently Asked Questions (FAQs)

  • The recommended torque for securing the 74164-0110 connector to the PCB is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper connection and prevent damage to the connector or PCB.
  • Yes, the 74164-0110 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and securing of the connector to the PCB to prevent loosening or damage. Additionally, consider using a connector with a locking mechanism or a secondary locking device for added security in high-vibration environments.
  • The 74164-0110 connector has an operating temperature range of -40°C to 105°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions. Always consult the datasheet and manufacturer's guidelines for specific temperature ratings and derating factors.
  • It's not recommended to use the 74164-0110 connector with a mating connector from another manufacturer, as compatibility and performance may vary. Molex connectors are designed to mate with other Molex connectors, ensuring optimal performance and reliability. Using a connector from another manufacturer may lead to connectivity issues, signal degradation, or even damage to the connector or PCB.
  • The lead time for delivery of the 74164-0110 connector may vary depending on the quantity, region, and availability. Typically, Molex connectors have a lead time of 2-6 weeks for standard orders. However, it's best to check with authorized distributors or the manufacturer for the most up-to-date lead times and availability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74164-0110 Overview

Use the download button to access the 74164-0110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74164, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
