744206 - Würth Elektronik

Description: WE-SL SMT Common Mode Line Filter L = 60 µH; Z = 1600 Ω; IR = 2000 mA; RDC = 0.065 Ω

Download 744206 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

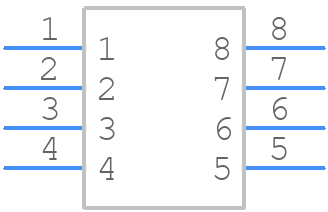

Symbol
744206 - Würth Elektronik - PCB symbol
click to zoom

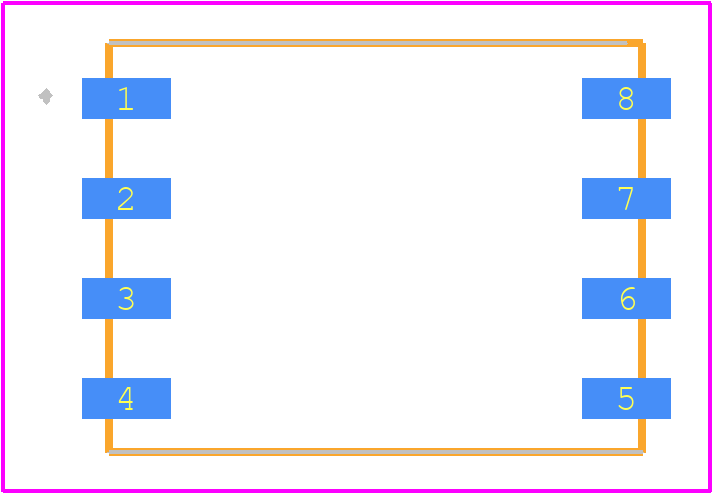

PCB Footprints
744206 - Würth Elektronik PCB footprint - Other - Other - 744206-1
click to zoom
3D Models
744206 - Würth Elektronik - 3D model - Other - 744206-1
click to zoom

744206 Details

  • Manufacturer Part Number:

    744206

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT, SMD, 8 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Approvals:

    UL

  • DC Resistance-Max:

    0.065 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    5.75 mm

  • Inductance:

    60 µH

  • JESD-609 Code:

    e3

  • Length:

    10.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    1600 OHM Ω

  • Rated Current:

    2 A

  • Rated Voltage:

    80 V

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    9.5 mm

744206 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 744206 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model. It's essential to follow the recommended footprint to ensure proper soldering and thermal management.
  • The thermal pads on the 744206 should be connected to a solid ground plane on the PCB to ensure efficient heat dissipation. A thermal via or a copper pour connected to the ground plane is recommended.
  • The 744206 is rated for operation from -40°C to +125°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range. It's essential to consider the specific application's temperature requirements.
  • The 744206 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you may need to consider additional mechanical reinforcement or alternative components specifically designed for high-vibration environments.
  • Follow the recommended soldering profile and temperature guidelines provided by Wurth Elektronik. Ensure the PCB is clean and free of oxidation. Use a solder with a melting point compatible with the component's rating.
