Wurth Elektronik provides a recommended PCB layout in their application notes and layout recommendations documents. It's essential to follow these guidelines to ensure optimal performance, minimal electromagnetic interference (EMI), and reduced radiation.
The 7445404 has a thermal pad on the bottom side, which should be connected to a solid ground plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow around the component, and consider using thermal vias or heat sinks if necessary.
The 7445404 is rated for operation from -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. Always check the datasheet and application notes for specific temperature-related guidelines.
The 7445404 is designed to withstand moderate vibrations, but it's crucial to ensure that the PCB is properly secured and the component is mounted correctly to prevent mechanical stress. Consult Wurth Elektronik's application notes and vibration testing guidelines for more information.
Start by consulting the datasheet and application notes for troubleshooting guidelines. Check for proper PCB layout, component orientation, and soldering quality. Use oscilloscopes and signal analyzers to debug signal integrity issues. If problems persist, contact Wurth Elektronik's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7445404 Overview

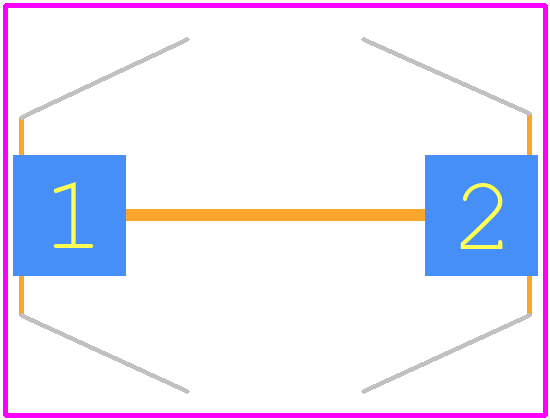

Use the download button to access the 7445404 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74454,
or try a keyword search, such as Fixed Inductors
