7446632002 - Würth Elektronik

Description: WE-LF SMT Common Mode Power Line Choke Size SH; L = 2.2 mH; IR = 2.75 A; RDC = 0.1 Ω

Download 7446632002 Model

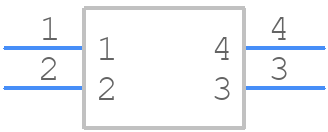

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

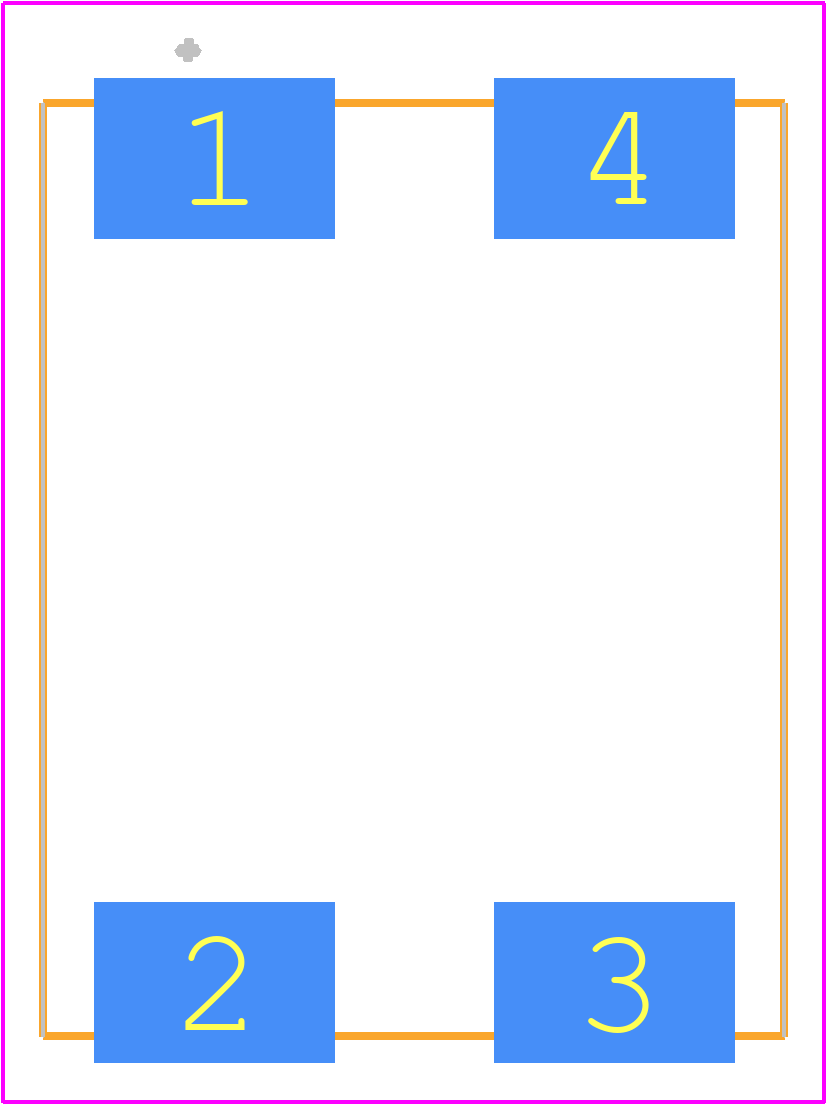

PCB Footprints
7446632002 - Würth Elektronik PCB footprint - Other - Other - 7446632002-2
click to zoom
3D Models
7446632002 - Würth Elektronik  - 3D model - Other - 7446632002-2
click to zoom

7446632002 Details

  • Manufacturer Part Number:

    7446632002

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Approvals:

    UL

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    11.5 mm

  • Length:

    23.3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency:

    50Hz Hz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    2 A

  • Rated Voltage:

    250 V

  • Width:

    18.5 mm

7446632002 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 7446632002 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model. It's essential to follow the recommended footprint to ensure proper soldering and thermal management.
  • The 7446632002 has a thermal pad on the bottom side, which should be connected to a thermal vias or a copper plane on the PCB to dissipate heat efficiently. Ensure good thermal conductivity and avoid thermal bottlenecks.
  • The 7446632002 is rated for operation from -40°C to +125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
  • The 7446632002 is designed to withstand moderate vibrations. However, it's crucial to consider the specific vibration profile and ensure the component is properly secured to the PCB using suitable mounting and soldering techniques.
  • To ensure EMC, follow proper PCB design guidelines, use shielding if necessary, and consider the component's radiation pattern. Additionally, ensure proper grounding and decoupling to minimize electromagnetic interference.
