7447231221 - Würth Elektronik

Description: WE-TI Radial Leaded Wire Wound Inductor Size 1018; L = 220 µH ±10%; IR = 1.75 A; Isat = 2.1 A; RDC = 200 mΩ

Download 7447231221 Model

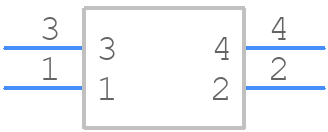

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

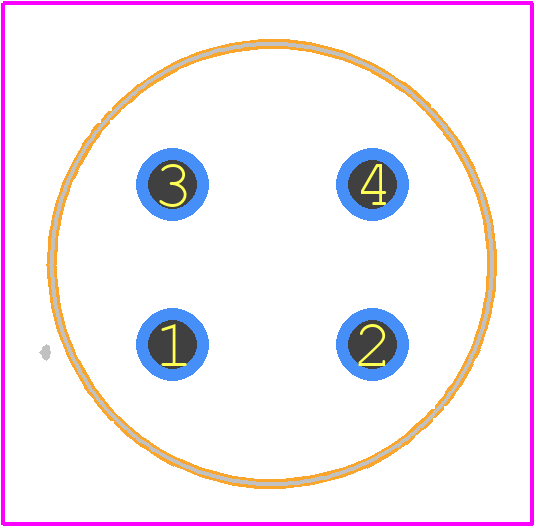

7447231221 - Würth Elektronik PCB footprint - Other - Other - 7447231221-1
click to zoom
3D Models
7447231221 - Würth Elektronik  - 3D model - Other - 7447231221-1
click to zoom

7447231221 Details

  • Manufacturer Part Number:

    7447231221

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Construction:

    Cylindrical

  • Core Material:

    NICKEL-ZINC FERRITE

  • DC Resistance:

    0.2 Ω

  • Inductance-Nom (L):

    220 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    3.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Length:

    19 mm

  • Package Style:

    PCB Mount

  • Packing Method:

    Tray

  • Rated Current-Max:

    1.75 A

  • Self Resonance Frequency:

    2.4 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    10%

7447231221 Frequently Asked Questions (FAQs)

  • Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and whitepapers. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
  • The 7447231221 has a high power density, so proper thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to keep the component within the recommended operating temperature range.
  • The maximum operating temperature range for the 7447231221 is typically specified as -40°C to +125°C. However, it's essential to check the specific datasheet and application notes for the exact temperature range, as it may vary depending on the specific component and application.
  • Follow the recommended soldering profile and techniques, and ensure the component is properly aligned and secured to the PCB. Use a soldering iron with a temperature range of 220°C to 250°C, and apply a small amount of solder paste or flux to the pads.
  • The 7447231221 is a sensitive component and requires proper ESD protection during handling and assembly. Use ESD-safe materials, follow proper grounding procedures, and handle the component by the body or pins to prevent damage.
