The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
Yes, the 745-104 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress up to 1 meter for 30 minutes.
Yes, the 745-104 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10 g according to IEC 60068-2-6.
The maximum operating temperature range for the 745-104 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and commercial applications.
Yes, the 745-104 connector is designed to be compatible with other WAGO products, including their range of connectors, terminals, and PCB connectors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
745-104 Overview

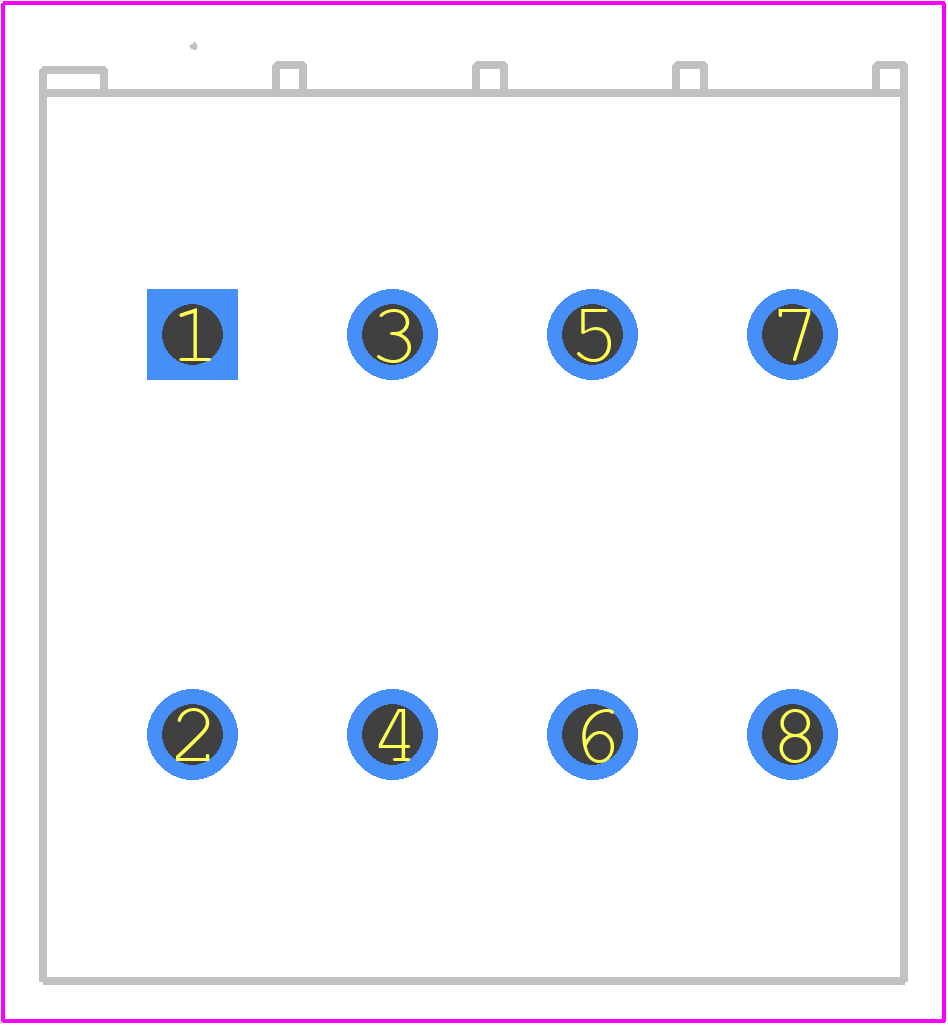

Use the download button to access the 745-104 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 745-1,
or try a keyword search, such as Terminals and Terminal Blocks
