Part Image

745-1402 - Wago

Description: PCB terminal block; 6 mm²; Pin spacing 12.5 mm; 2-pole; CAGE CLAMP®; commoning option

Download 745-1402 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
745-1402 - Wago - PCB symbol
click to zoom
PCB Footprints

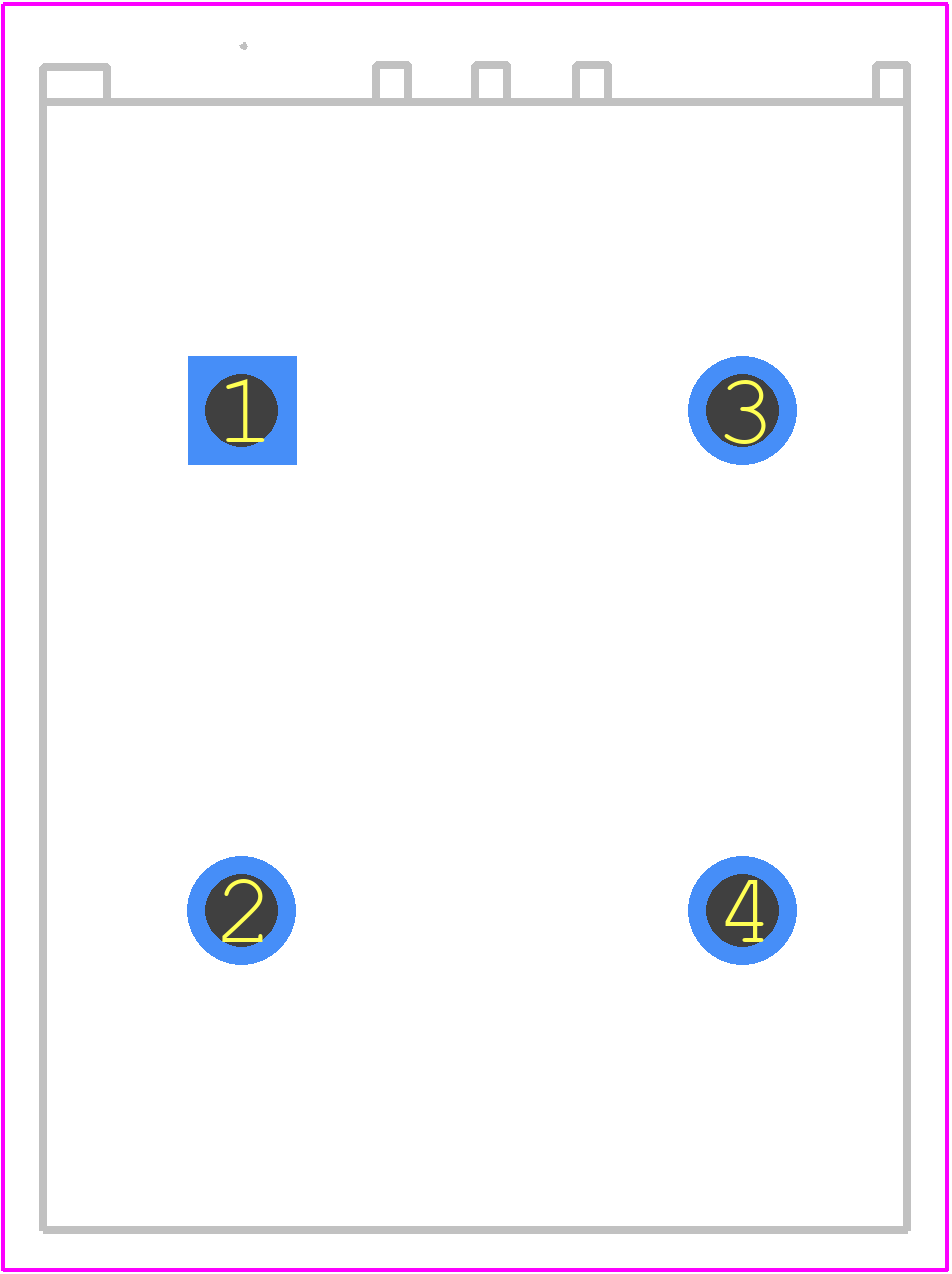

745-1402 - Wago PCB footprint - Other - Other - 745-1402-1
click to zoom

745-1402 Details

  • Manufacturer Part Number:

    745-1402

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    30 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    CCA;CSA;CUL;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    10 AWG

745-1402 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 745-1402 connector is designed to withstand high vibrations and is suitable for use in applications with intense vibrations, such as in industrial machinery or transportation systems.
  • Yes, the 745-1402 connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
  • Yes, the 745-1402 connector is designed to accept stranded wires, but it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
  • The operating temperature range of the 745-1402 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

745-1402 Overview

Use the download button to access the 745-1402 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 745-1, or try a keyword search, such as Terminals and Terminal Blocks
