745-160 - Wago

Description: PCB terminal block; 4 mm²; Pin spacing 7.5 mm; 10-pole; CAGE CLAMP®; commoning option

Download 745-160 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

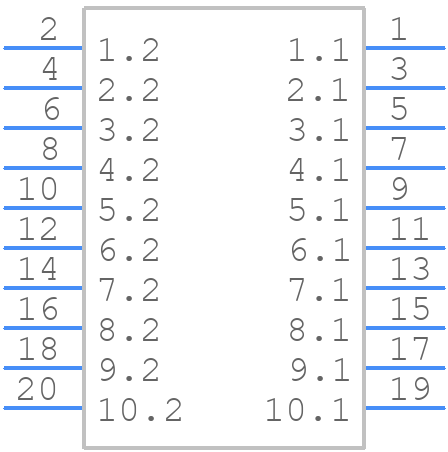

745-160 - Wago - PCB symbol
click to zoom
PCB Footprints

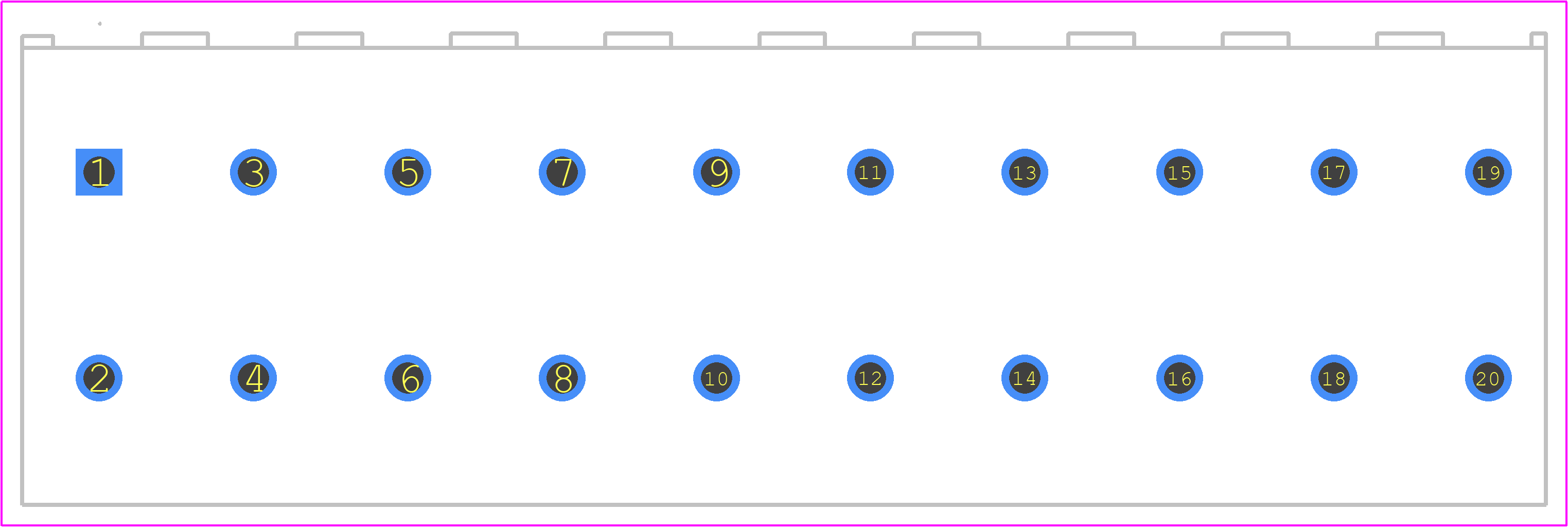

745-160 - Wago PCB footprint - Other - Other - 745-160-1
click to zoom
3D Models
745-160 - Wago - 3D model - Other - 745-160-1
click to zoom

745-160 Details

  • Manufacturer Part Number:

    745-160

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0; POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Packing Method:

    BOX

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

745-160 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 745-160 is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 745-160 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 2, which includes vibration testing up to 2g acceleration and 10-200 Hz frequency range.
  • Yes, the 745-160 is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress, including temporary immersion in water up to 1 meter for 30 minutes.
  • Yes, the 745-160 is designed to accept stranded wire. However, it's recommended to use a wire ferrule or wire end sleeve to ensure a secure connection.
  • The operating temperature range of the 745-160 is -40°C to +125°C (-40°F to +257°F).
