745-303/005-000 - Wago

Description: PCB terminal block; 6 mm²; Pin spacing 7.5 mm; 3-pole; CAGE CLAMP®; commoning option

Download 745-303/005-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
745-303/005-000 - Wago - PCB symbol
click to zoom
PCB Footprints

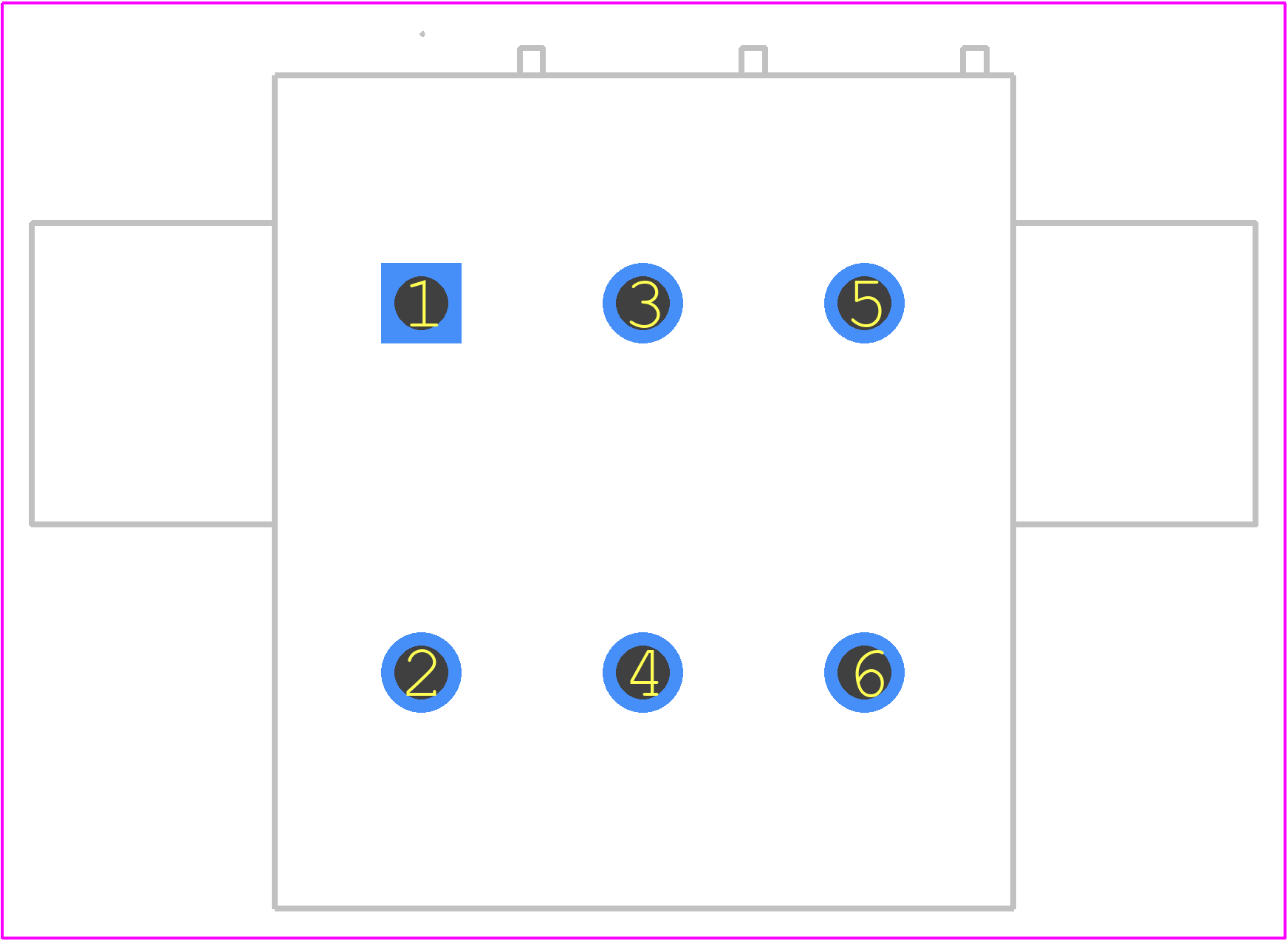

745-303/005-000 - Wago PCB footprint - Other - Other - 745-303/005-000-1
click to zoom

745-303/005-000 Details

  • Manufacturer Part Number:

    745-303/005-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    30 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    10 AWG

745-303/005-000 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs) to ensure secure connections.
  • Yes, the 745-303/005-000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
  • The maximum operating temperature for the 745-303/005-000 connector is 125°C (257°F), making it suitable for use in high-temperature applications.
  • Yes, the connector is designed to accept stranded wire, but it's recommended to use a wire ferrule to ensure a secure connection.
