745-304 - Wago

Description: PCB terminal block; 6 mm²; Pin spacing 7.5 mm; 4-pole; CAGE CLAMP®; commoning option

Download 745-304 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
745-304 - Wago - PCB symbol
click to zoom
PCB Footprints

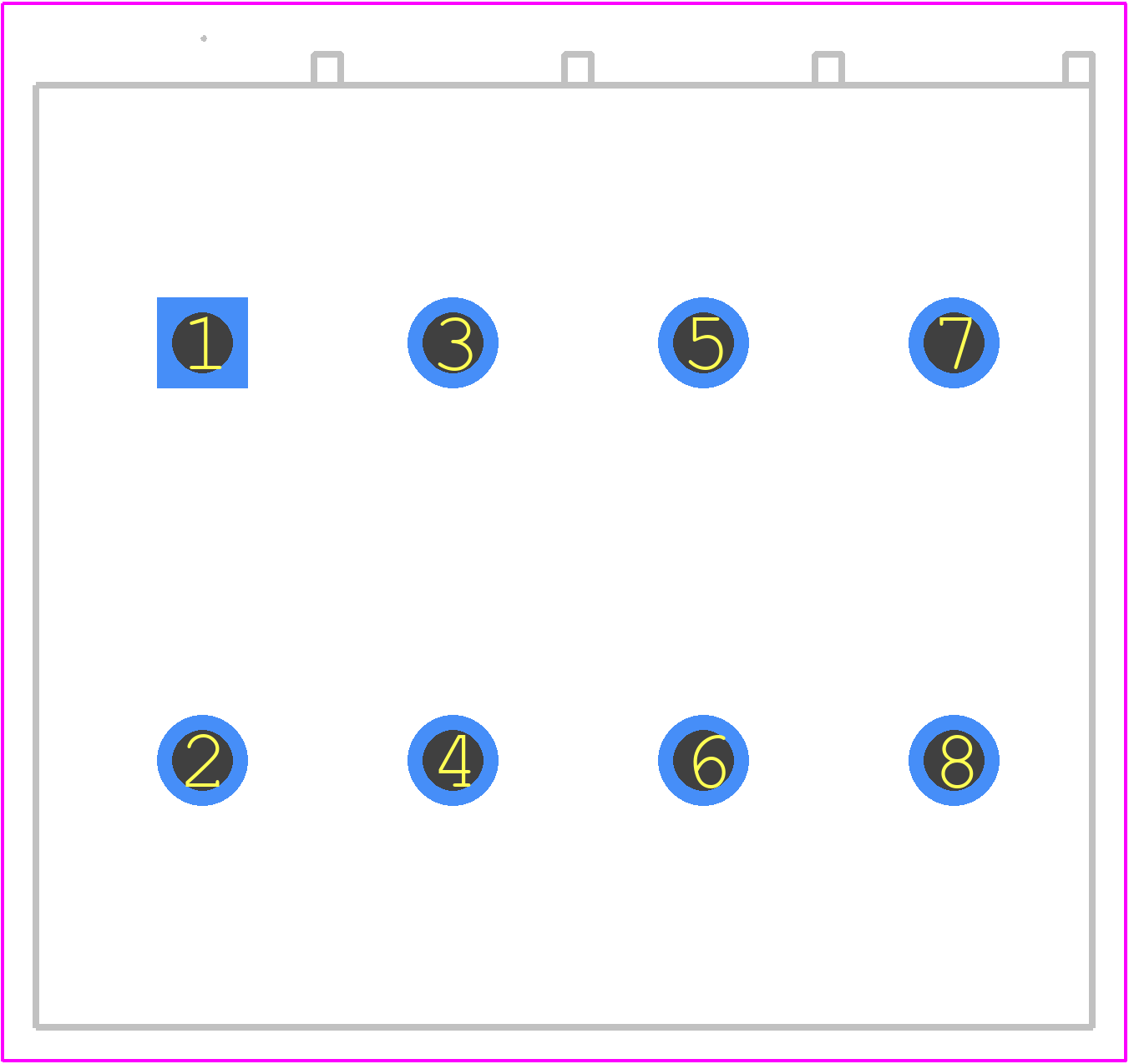

745-304 - Wago PCB footprint - Other - Other - 745-304-1
click to zoom
3D Models
745-304 - Wago - 3D model - Other - 745-304-1
click to zoom

745-304 Details

  • Manufacturer Part Number:

    745-304

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    30 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    10 AWG

745-304 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the 745-304 connector is designed to withstand high-vibration environments. The connector's screw terminals and housing are designed to provide a secure connection even in applications with intense vibrations.
  • The 745-304 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's essential to ensure the connector is properly sealed and installed to maintain its IP67 rating in outdoor environments.
  • Yes, the 745-304 connector is suitable for use with stranded wire. However, it's essential to follow the recommended wire preparation and termination procedures to ensure a reliable connection.
  • The operating temperature range of the 745-304 connector is -40°C to 125°C (-40°F to 257°F). The connector is designed to maintain its electrical and mechanical properties within this temperature range.
