The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type. It's essential to follow the torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 745-3153 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow the recommended mounting and wiring guidelines to ensure reliable performance.
The 745-3153 connector has a rating of IP20, which means it provides protection against solid objects larger than 12 mm, but it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider WAGO's connectors with higher IP ratings, such as IP67 or IP69K.
Yes, the 745-3153 connector is suitable for use with stranded wires. However, it's essential to follow the recommended wire preparation and termination procedures to ensure reliable connections. WAGO provides guidelines for wire preparation and termination in their documentation and application notes.
The 745-3153 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and commercial applications. However, it's essential to consider the temperature rating of the wires and other components in the system to ensure reliable performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
745-3153 Overview

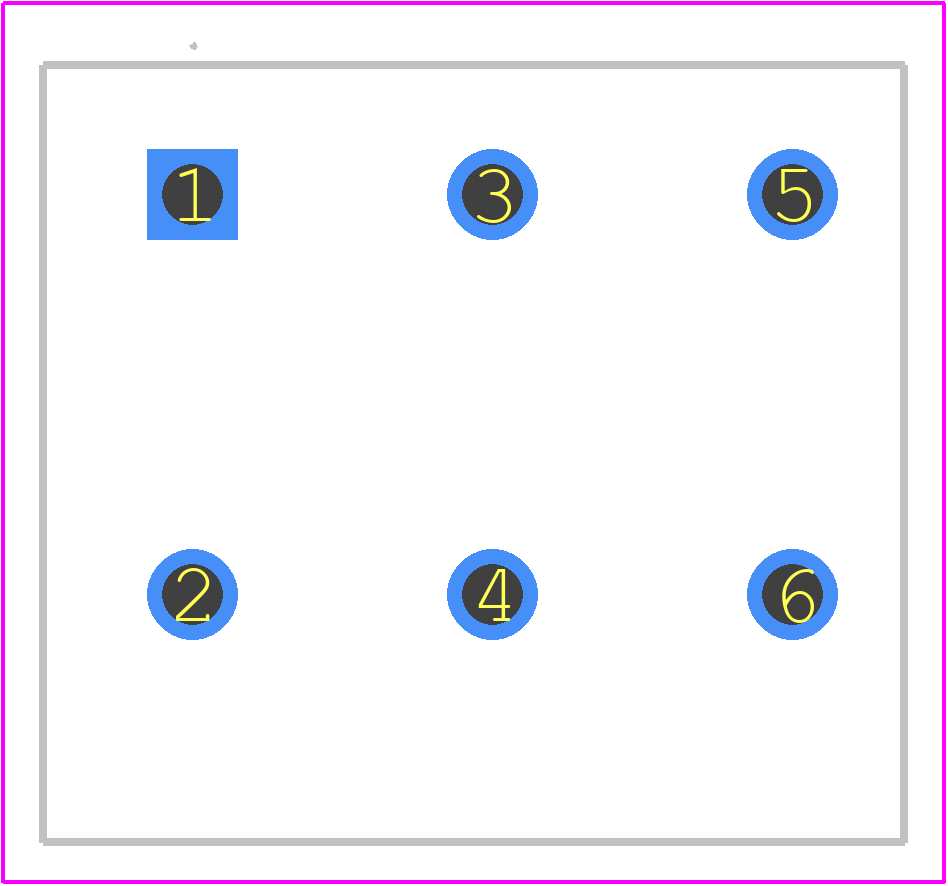

Use the download button to access the 745-3153 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 745-3,
or try a keyword search, such as Terminals and Terminal Blocks
