745-3203 - Wago

Description: PCB terminal block; 4 mm²; Pin spacing 10 mm; 3-pole; CAGE CLAMP®

Download 745-3203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

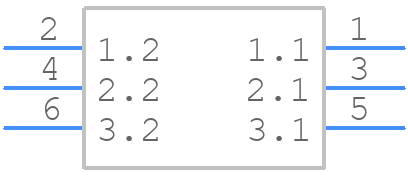

745-3203 - Wago - PCB symbol
click to zoom
PCB Footprints

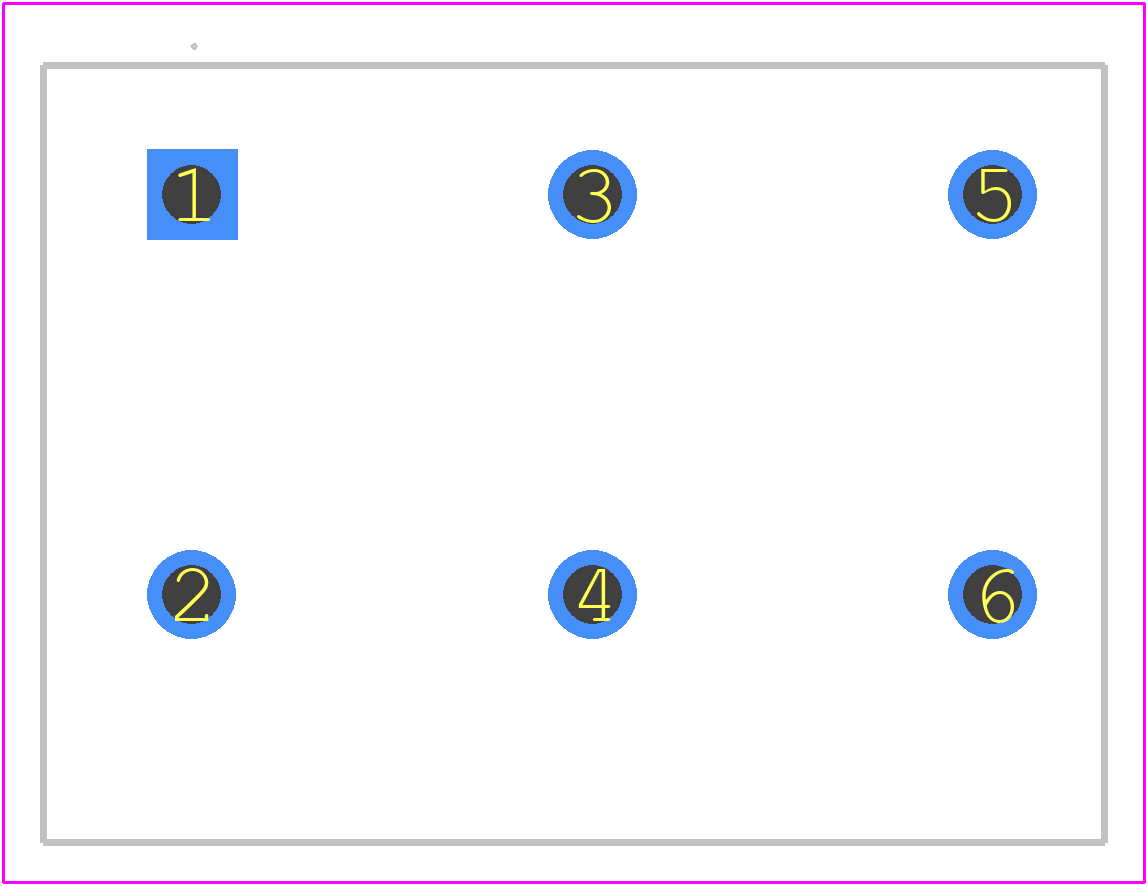

745-3203 - Wago PCB footprint - Other - Other - 745-3203-1
click to zoom
3D Models
745-3203 - Wago - 3D model - Other - 745-3203-1
click to zoom

745-3203 Details

  • Manufacturer Part Number:

    745-3203

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    9

  • Additional Feature:

    STANDARD: UL 94V-0; POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Packing Method:

    BOX

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;CUL;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

745-3203 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 745-3203 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6, which ensures reliable connections even in demanding applications.
  • The 745-3203 connector has a rating of IP67, which means it is protected against dust and temporary immersion in water. However, it's essential to follow proper installation and sealing guidelines to ensure the connector remains watertight in outdoor or harsh environments.
  • Yes, the 745-3203 connector is suitable for use with stranded wire. However, it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.
  • The 745-3203 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
