745-352 footprint, schematic symbol and 3D model by Wago

Symbol

click to zoom

PCB Footprints

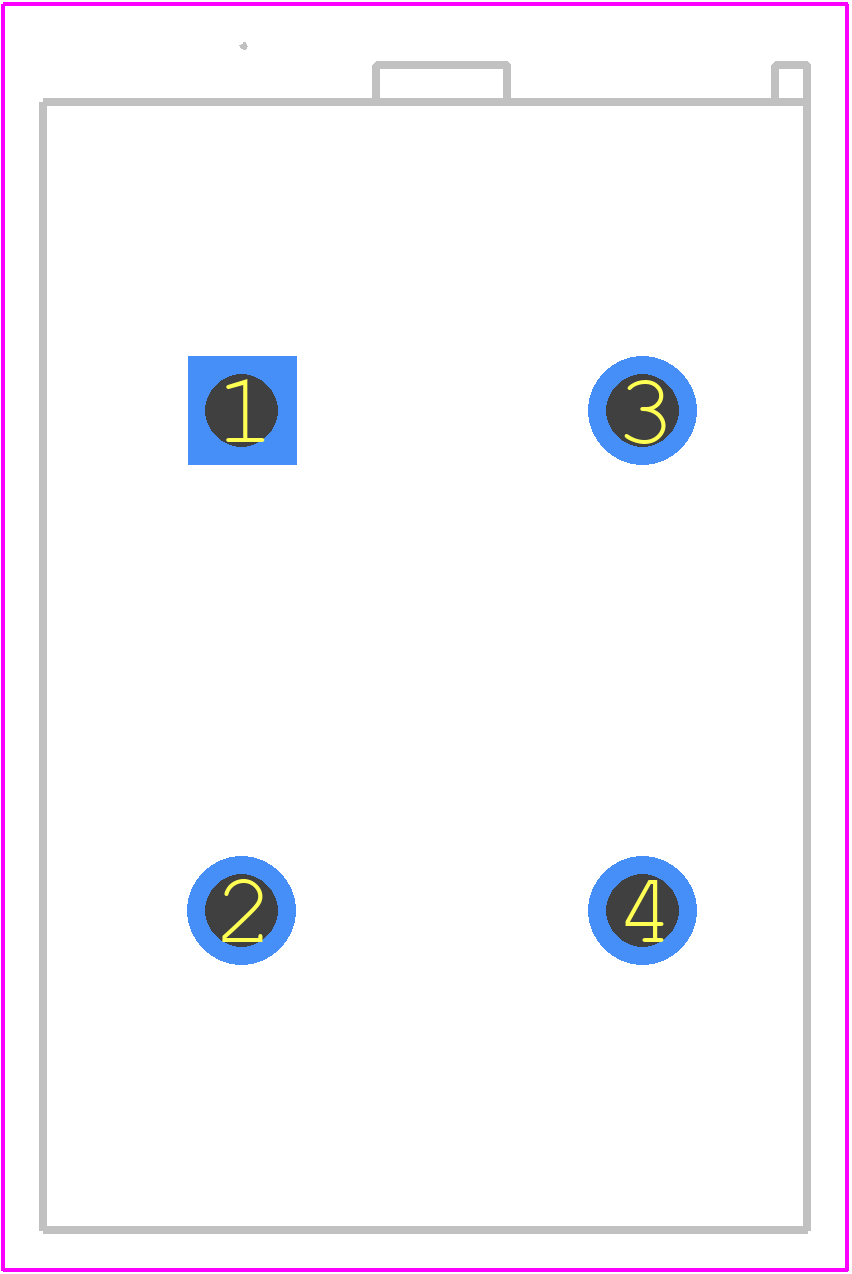

745-352 - Wago PCB footprint - Other - Other - 745-352-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 745-352
Part Number 745-352
Manufacturer Wago
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - 745-352-1
Released Date Jun 8, 2026
Last Modified Date Jun 8, 2026 6:11 AM UTC
Pinout / Pin List Click Here (Member Only)

745-352 Details

Manufacturer Part Number:
745-352
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Poland
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
WAGO Innovative Connections
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
7
Rated Current:
41 A
Rated Voltage:
630 V
Terminal and Terminal Block Type:
STRIP TERMINAL BLOCK
Wire Cross Section:
6 mm2
Wire Gauge:
10 AWG

745-352 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) to ensure reliable connections.
Yes, the 745-352 connector is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 61373 Cat. 1 Class B.
Yes, the 745-352 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
The 745-352 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
Yes, the 745-352 connector is suitable for use with stranded wire. However, it's essential to follow the manufacturer's guidelines for wire preparation and termination.
