745-353 - Wago

Description: PCB terminal block; 6 mm²; Pin spacing 10 mm; 3-pole; CAGE CLAMP®; commoning option

Download 745-353 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
745-353 - Wago - PCB symbol
click to zoom
PCB Footprints

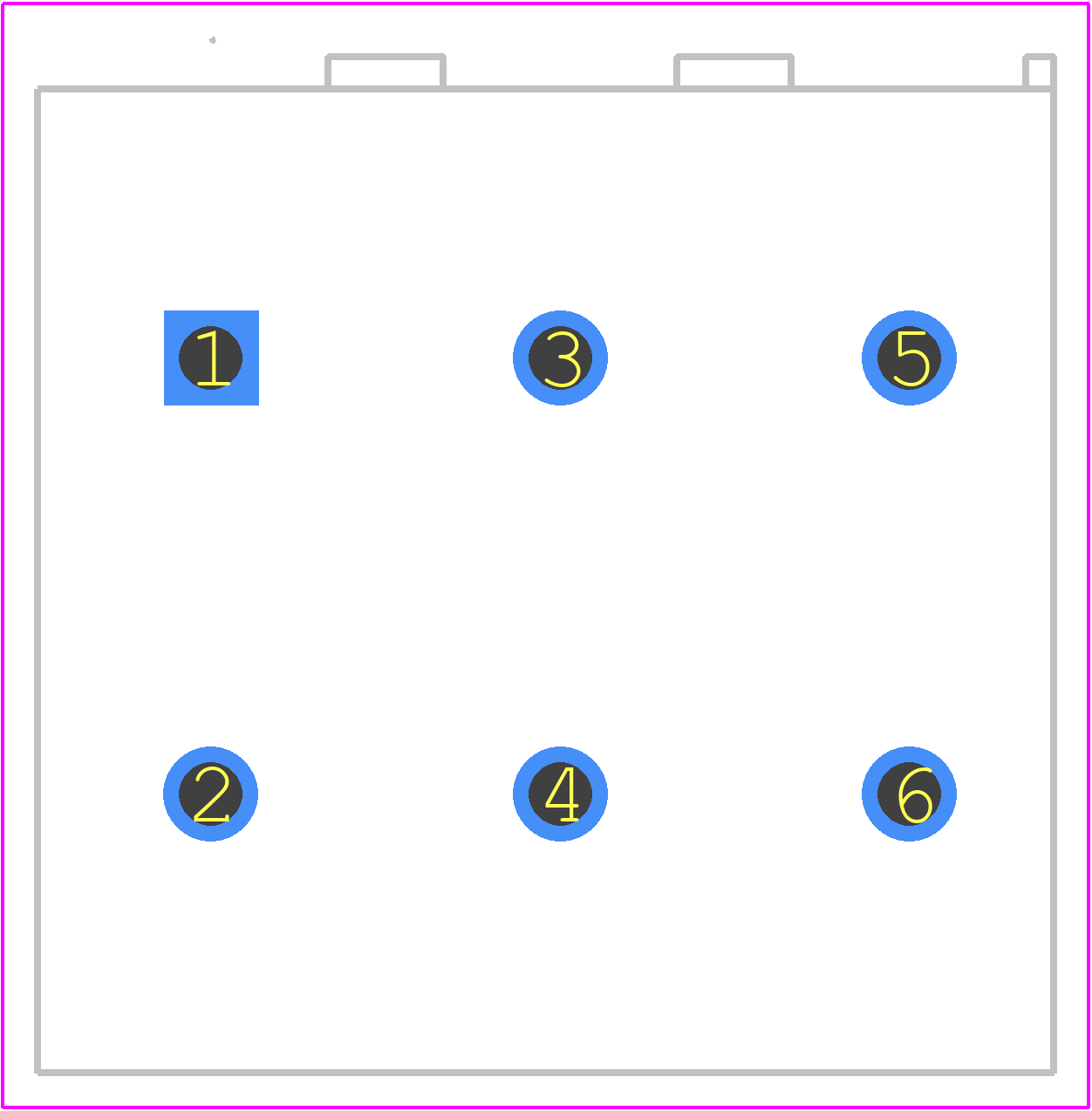

745-353 - Wago PCB footprint - Other - Other - 745-353-1
click to zoom
3D Models
745-353 - Wago - 3D model - Other - 745-353-1
click to zoom

745-353 Details

  • Manufacturer Part Number:

    745-353

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    30 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    10 AWG

745-353 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) to ensure secure connections.
  • Yes, the 745-353 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 745-353 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 745-353 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 745-353 connector is designed to accept stranded wire, but it's recommended to use a wire ferrule to ensure a secure connection.
