745-603/006-000 - Wago

Description: PCB terminal block; 16 mm²; Pin spacing 15 mm; 3-pole; CAGE CLAMP®; commoning option

Download 745-603/006-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

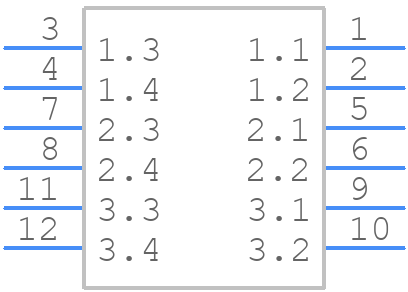

745-603/006-000 - Wago - PCB symbol
click to zoom
PCB Footprints

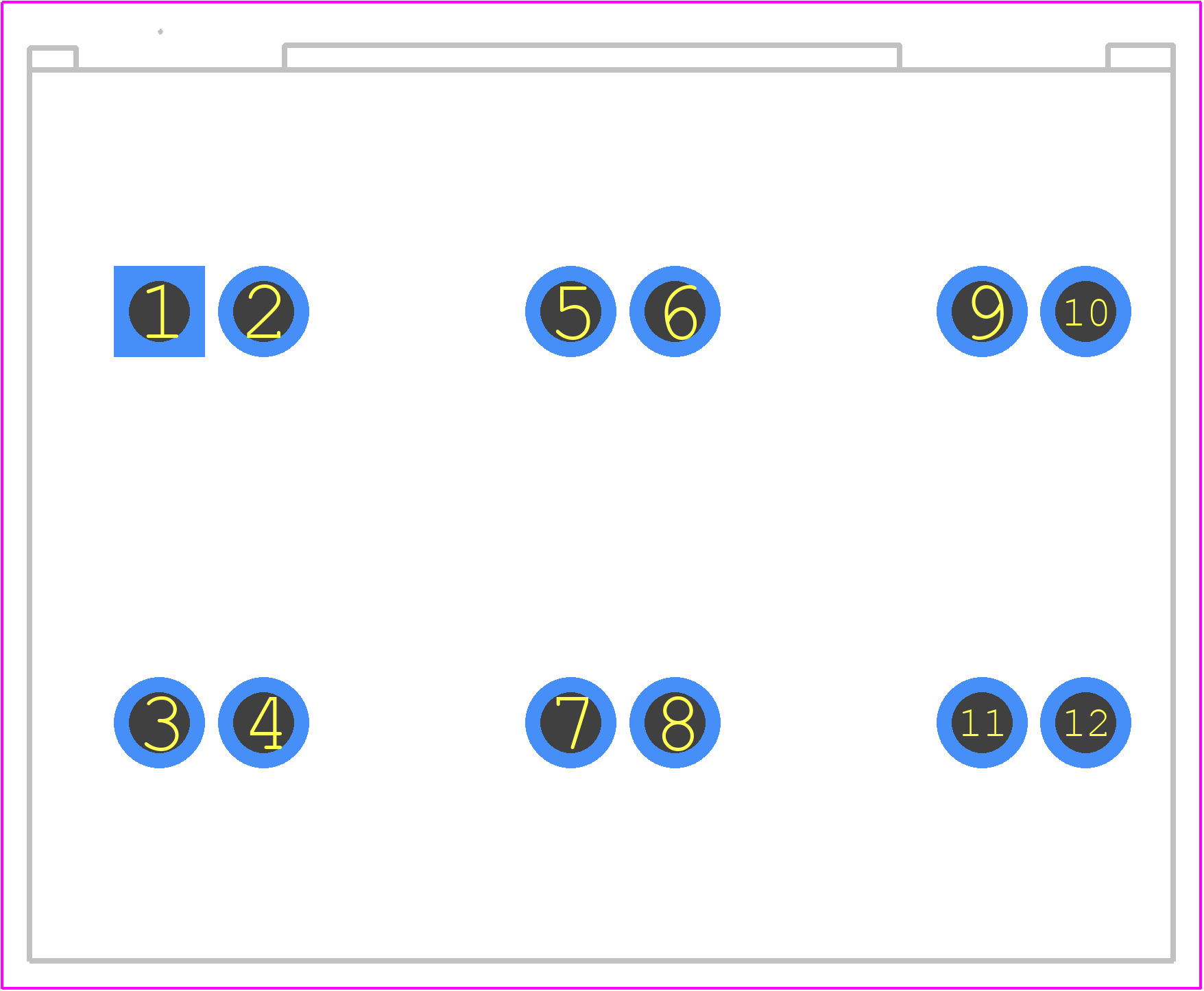

745-603/006-000 - Wago PCB footprint - Other - Other - 745-603/006-000-2
click to zoom
3D Models
745-603/006-000 - Wago - 3D model - Other - 745-603/006-000-2
click to zoom

745-603/006-000 Details

  • Manufacturer Part Number:

    745-603/006-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    57 A

  • Rated Voltage:

    300 V

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    6 AWG

745-603/006-000 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 745-603/006-000 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in). Over-tightening can damage the connector.
  • Yes, the 745-603/006-000 connector is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure wiring to prevent damage.
  • The 745-603/006-000 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's crucial to follow proper installation and sealing guidelines to maintain the IP rating.
  • The 745-603/006-000 connector is designed to be compatible with other WAGO products. However, compatibility with third-party components should be verified before use. Consult WAGO's documentation or contact their support team for guidance.
  • The 745-603/006-000 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). Exceeding these temperatures may affect the connector's performance and lifespan.
