745-652/006-000 - Wago

Description: PCB terminal block; 16 mm²; Pin spacing 20 mm; 2-pole; CAGE CLAMP®; commoning option

Download 745-652/006-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
745-652/006-000 - Wago - PCB symbol
click to zoom
PCB Footprints

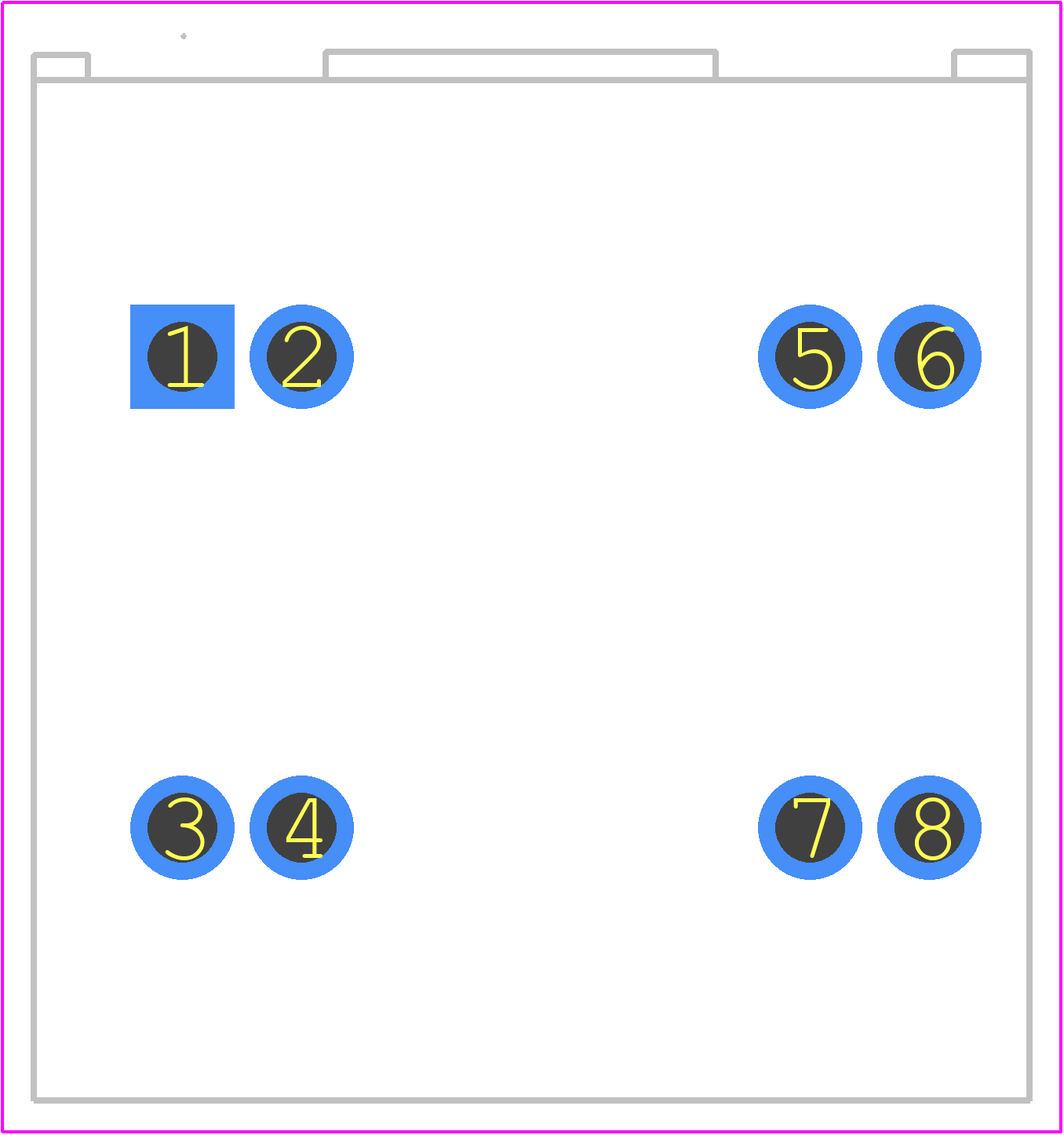

745-652/006-000 - Wago PCB footprint - Other - Other - 745-652/006-000-1
click to zoom
3D Models
745-652/006-000 - Wago - 3D model - Other - 745-652/006-000-1
click to zoom

745-652/006-000 Details

  • Manufacturer Part Number:

    745-652/006-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    57 A

  • Rated Voltage:

    600 V

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    6 AWG
