The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 746-2302 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow proper installation and mounting procedures to ensure the connector's performance in such applications.
The 746-2302 connector has a rating of IP20, which means it provides protection against solid objects larger than 12.5 mm, but it's not designed for outdoor use or exposure to harsh environmental conditions. If you need a connector for outdoor use, consider WAGO's connectors with higher IP ratings, such as IP67 or IP69K.
Yes, the 746-2302 connector is suitable for use with stranded wire. However, it's essential to follow WAGO's guidelines for preparing the wire ends and using the correct ferrules or wire end sleeves to ensure reliable connections.
Yes, the 746-2302 connector is UL certified (UL 1059) and meets the requirements for use in industrial control equipment. This certification ensures the connector meets specific safety standards for use in North America.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
746-2302 Overview

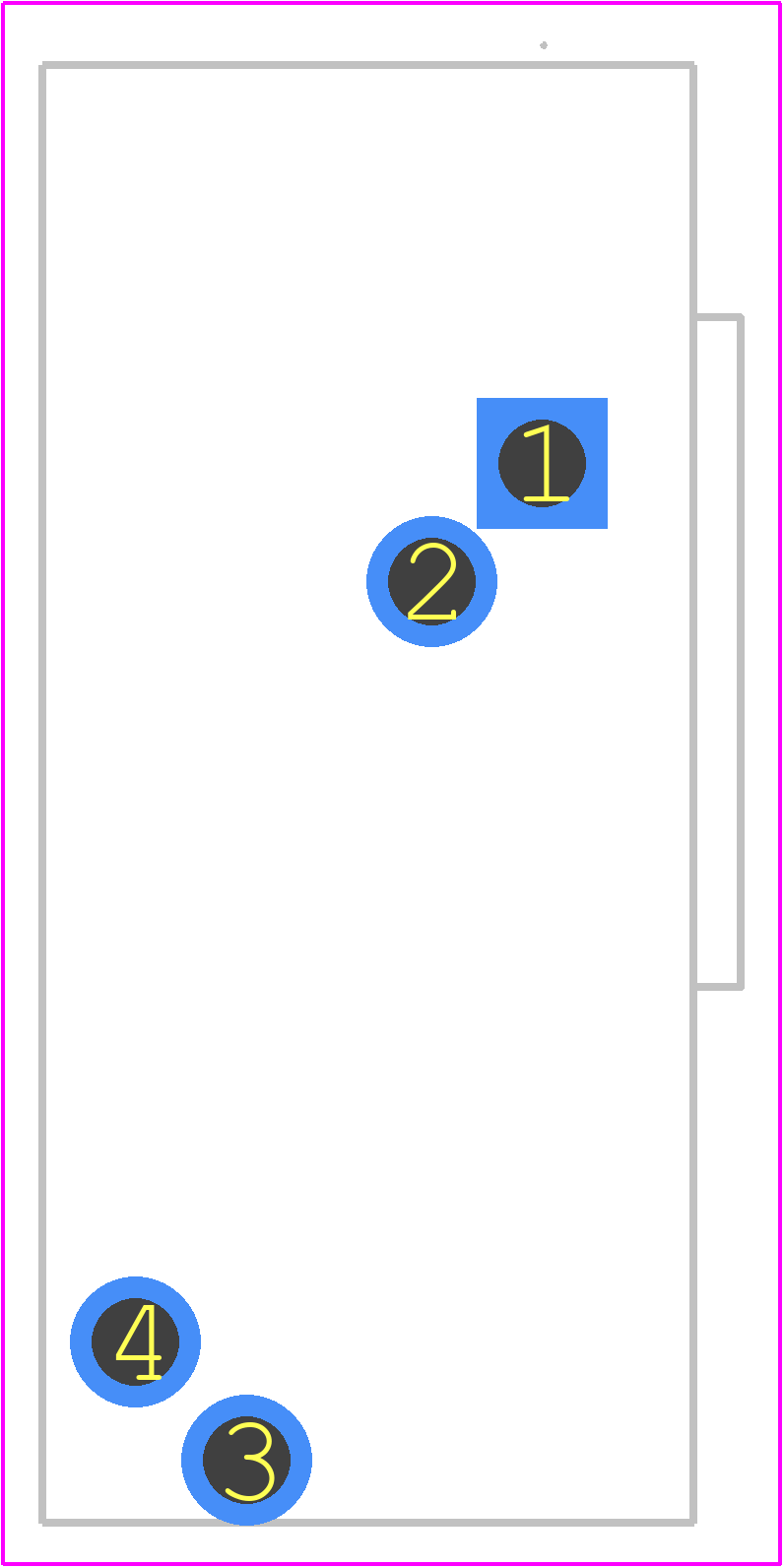

Use the download button to access the 746-2302 schematic symbol, PCB footprint, and 3D model.
