746-2304 - Wago

Description: 2-conductor PCB terminal block; 10 mm²; Pin spacing 7.5 mm; 4-pole; Push-in CAGE CLAMP®

Download 746-2304 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
746-2304 - Wago - PCB symbol
click to zoom
PCB Footprints

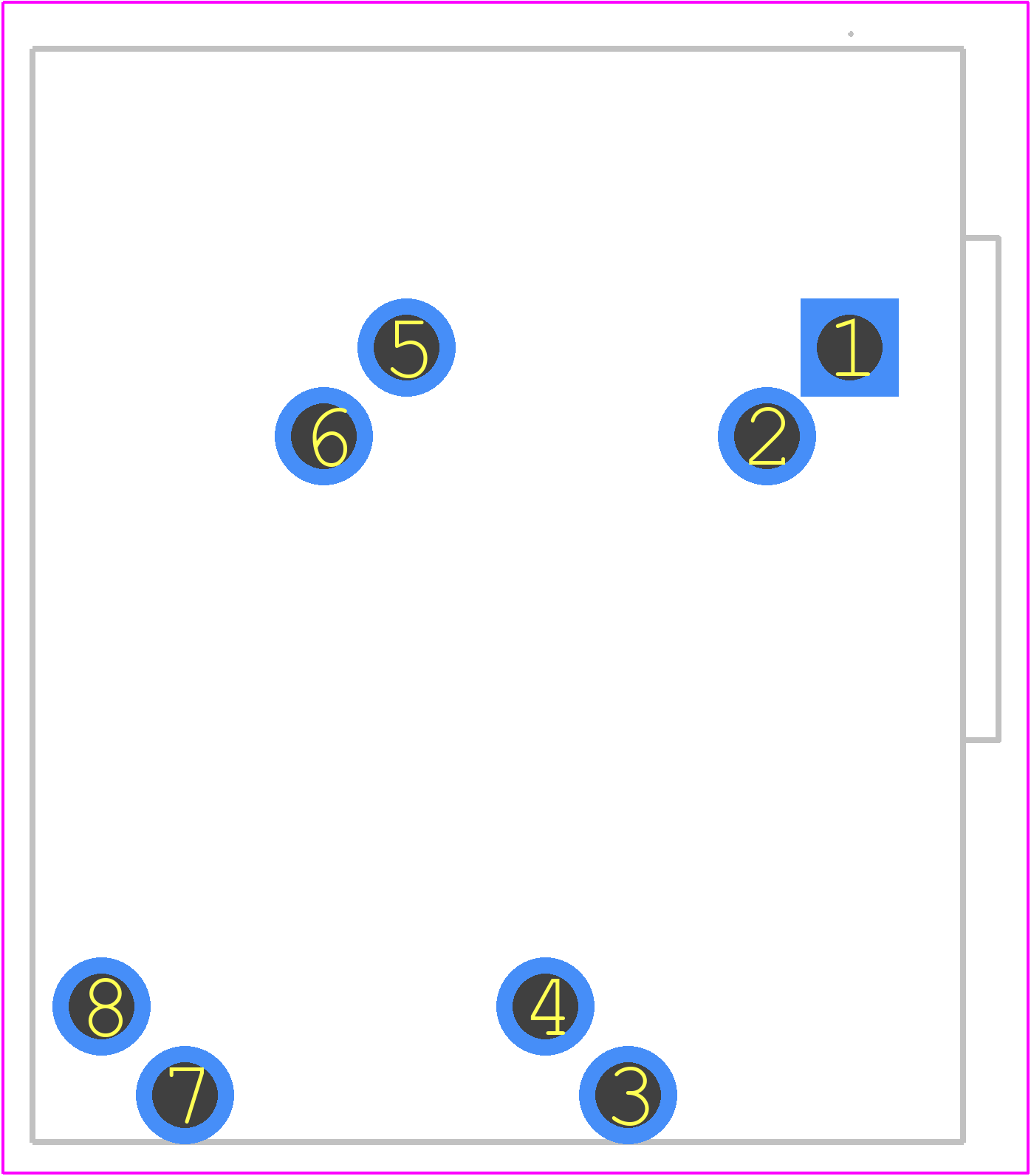

746-2304 - Wago PCB footprint - Other - Other - 746-2304-1
click to zoom
3D Models
746-2304 - Wago - 3D model - Other - 746-2304-1
click to zoom

746-2304 Details

  • Manufacturer Part Number:

    746-2304

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    50 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    10 mm2

  • Wire Gauge:

    8 AWG

746-2304 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 746-2304 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6, which ensures reliable connections even in demanding applications.
  • The 746-2304 connector has a rating of IP67, which means it is protected against dust and temporary immersion in water. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
  • Yes, the 746-2304 connector is suitable for use with stranded wire. However, it's essential to follow the manufacturer's recommendations for wire preparation and termination to ensure reliable connections.
  • The 746-2304 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
