Part Image

746-2306 - Wago

Description: 2-conductor PCB terminal block; 10 mm²; Pin spacing 7.5 mm; 6-pole; Push-in CAGE CLAMP®

Download 746-2306 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

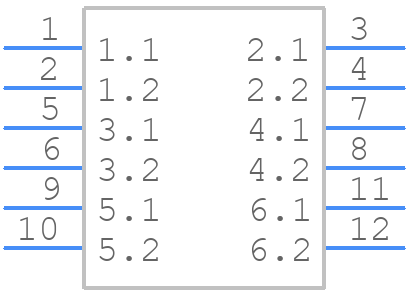

746-2306 - Wago - PCB symbol
click to zoom
PCB Footprints

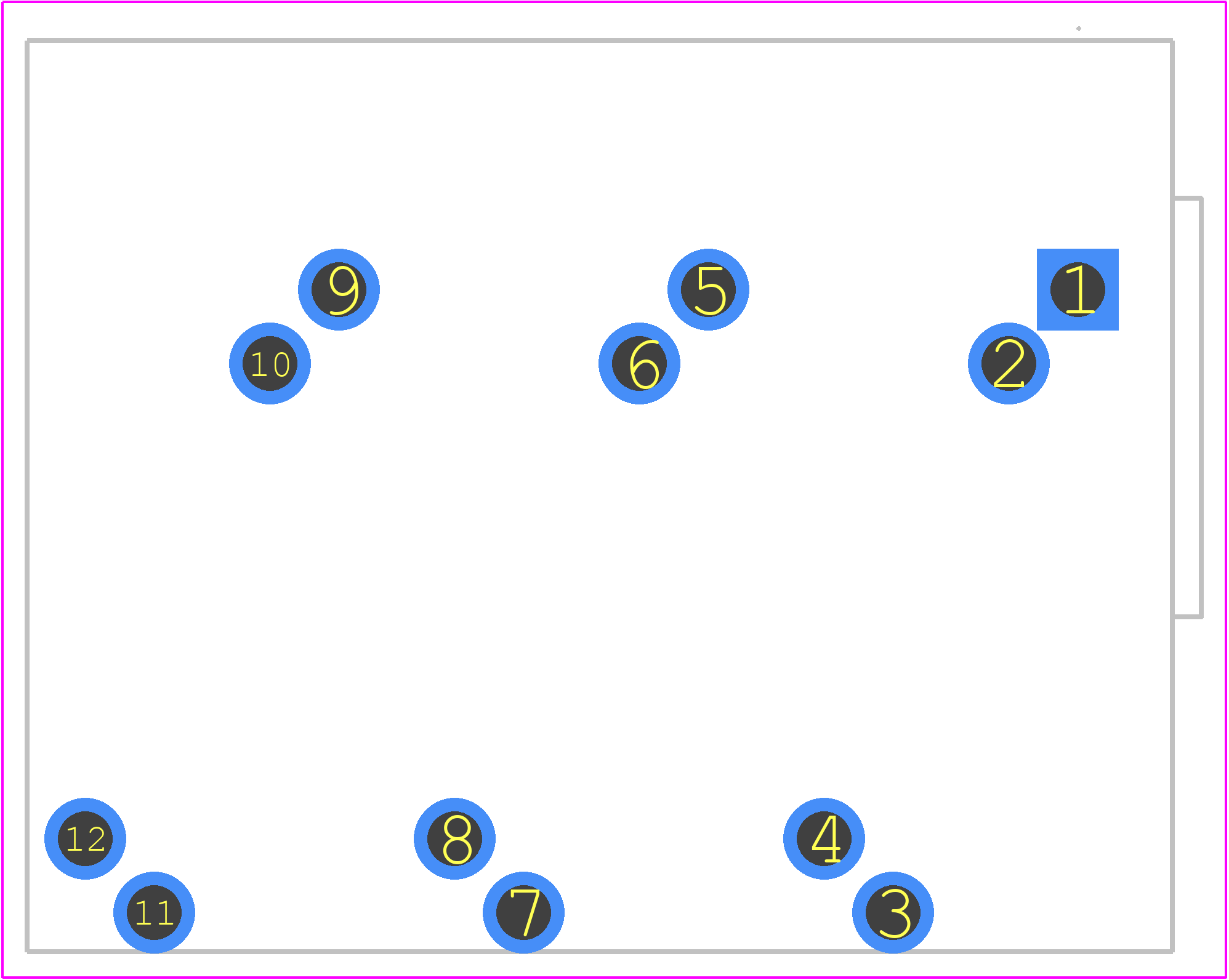

746-2306 - Wago PCB footprint - Other - Other - 746-2306-1
click to zoom
3D Models
746-2306 - Wago - 3D model - Other - 746-2306-1
click to zoom

746-2306 Details

  • Manufacturer Part Number:

    746-2306

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.87

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    50 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    10 mm2

  • Wire Gauge:

    8 AWG

746-2306 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) to ensure reliable connections.
  • Yes, the 746-2306 connector is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 746-2306 connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
  • Yes, the 746-2306 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG).
  • The 746-2306 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

746-2306 Overview

Use the download button to access the 746-2306 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 746-2, or try a keyword search, such as Terminals and Terminal Blocks
