Technical Content
Part Image

747540101 - Molex

Description: Molex 74754 Series Single Port Horizontal SFP+ Cage

Download 747540101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
747540101 - Molex - PCB symbol
click to zoom

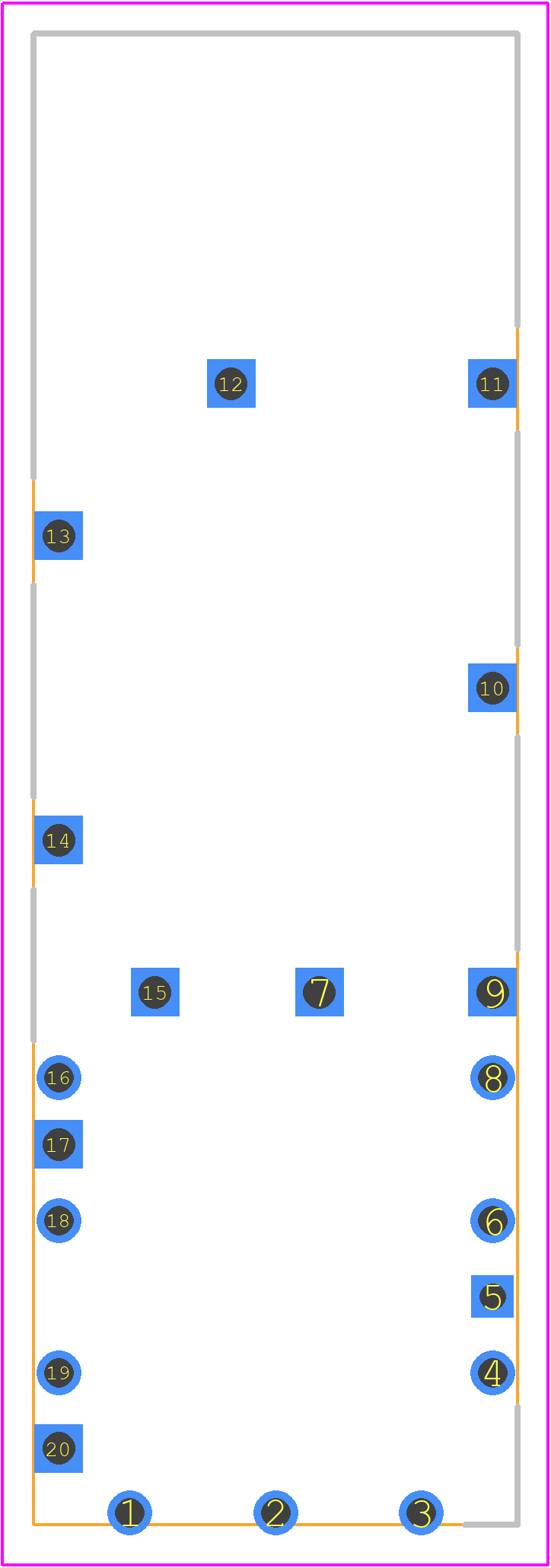

PCB Footprints
747540101 - Molex PCB footprint - Other - Other - 747540101-2
click to zoom
3D Models
747540101 - Molex - 3D model - Other - 747540101-2
click to zoom

747540101 Details

  • Manufacturer Part Number:

    747540101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    COPPER ALLOY

747540101 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 747540101 connector is designed to withstand vibrations and is suitable for use in high-vibration applications.
  • The operating temperature range for the 747540101 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 747540101 connector is designed for automated assembly and can be used with pick-and-place machines.
  • The recommended wire size for the 747540101 connector is 24-20 AWG (0.25-0.5 mm²).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

747540101 Overview

Use the download button to access the 747540101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74754, or try a keyword search, such as Assembly Items

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
