Description:WE-LAN 10/100/1000 Base-T SMT Transformer 1 Port 1000BASE-T LAN transformer, SMD, 24pin, pitch 1.27mm, -40°C to +105°C, 1.5KVrms isolation, PoE+ 600mA per centre tap
The recommended PCB layout for the 7490220121 involves keeping the component away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the component. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure optimal thermal performance, ensure good thermal conduction by using a thermal pad or thermal interface material between the component and the PCB. Also, avoid blocking airflow around the component and ensure good heat dissipation in the system design.
Handle the component by the body, avoiding touching the pins or electrical contacts. Store the component in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the component during handling or storage.
While the 7490220121 is designed to be robust, it's essential to ensure the component is properly secured to the PCB and the system is designed to withstand vibrations. Consider using additional mechanical support or potting the component for high-vibration applications.
To troubleshoot issues, start by verifying the component's pinout and connections. Check for signs of physical damage, overheating, or electrical overstress. Use a multimeter to measure voltage and current, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7490220121 Overview

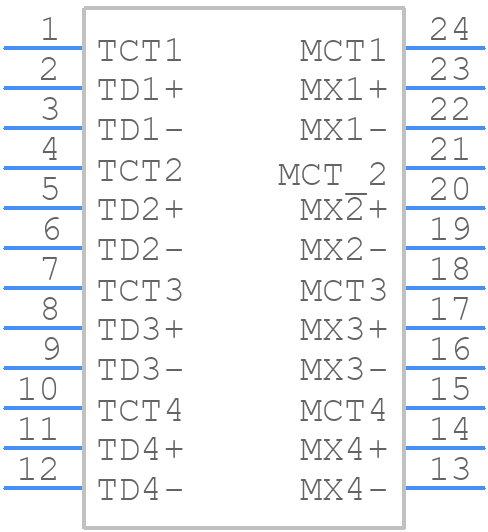

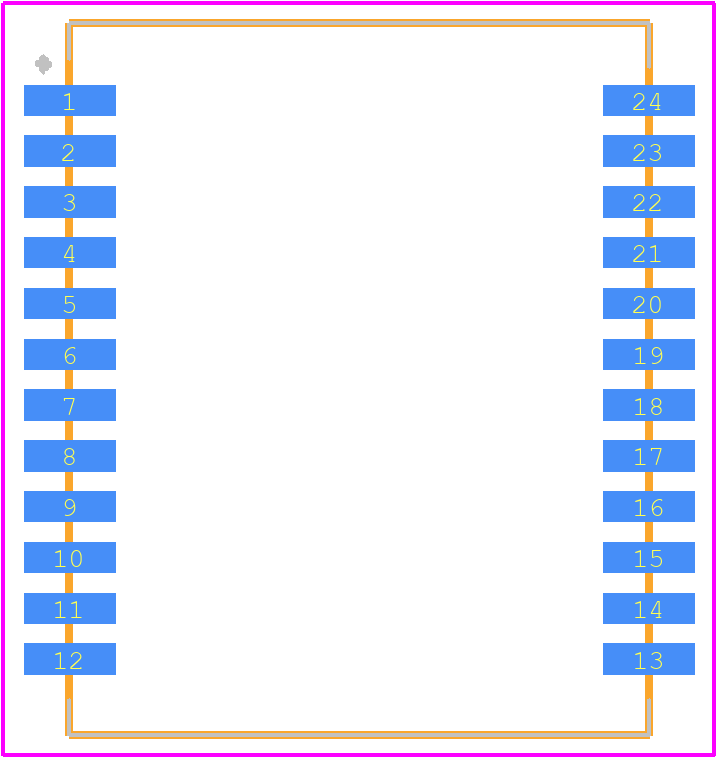

Use the download button to access the 7490220121 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74902,
or try a keyword search, such as Pulse/Datacom Transformers
