- Part Number 749084-5
- Manufacturer TE Connectivity
- Pin Count 52
- Part Category Connector
- Package Category Other

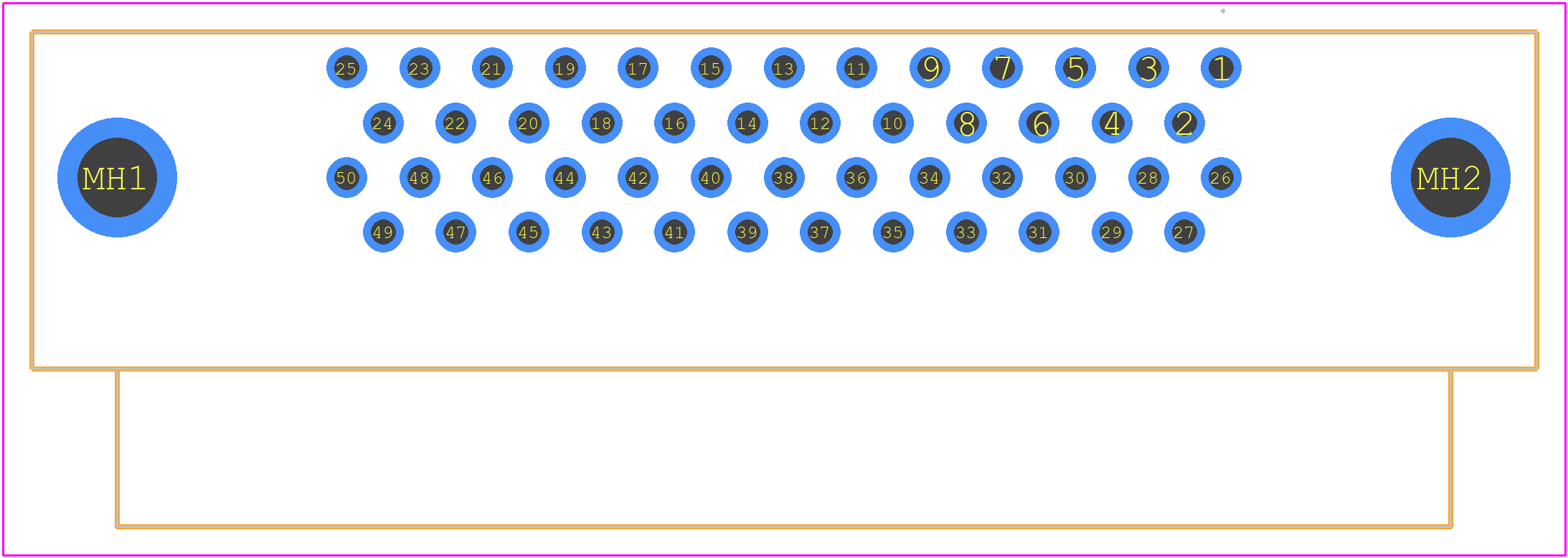

- Footprint Name Other - 749084-5-2
- Released Date Nov 13, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
749084-5 Details
-
Manufacturer Part Number:
749084-5
-
Brand Name:
AMP
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
21 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
AMPLIMITE
-
Body/Shell Style:
PLUG
749084-5 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 749084-5 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
-
The 749084-5 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Additionally, the connector's materials are resistant to UV and can withstand outdoor environments, but it's recommended to follow TE Connectivity's guidelines for outdoor use.
-
The 749084-5 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
Yes, the 749084-5 connector is designed to be compatible with other TE Connectivity products, such as their modular connectors and cable assemblies. However, it's recommended to verify compatibility and consult with TE Connectivity's documentation and technical support before integrating the connector with other products.
