749196521 - Würth Elektronik

Description: WE-FLEX Flexible Transformer for DC/DC Converter Size EFD20; Lbase = 12 µH; IR base = 1.7 A; Isat base = 1.73 A; RDC base = 71.1 mΩ

Download 749196521 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
749196521 - Würth Elektronik - PCB symbol
click to zoom
PCB Footprints

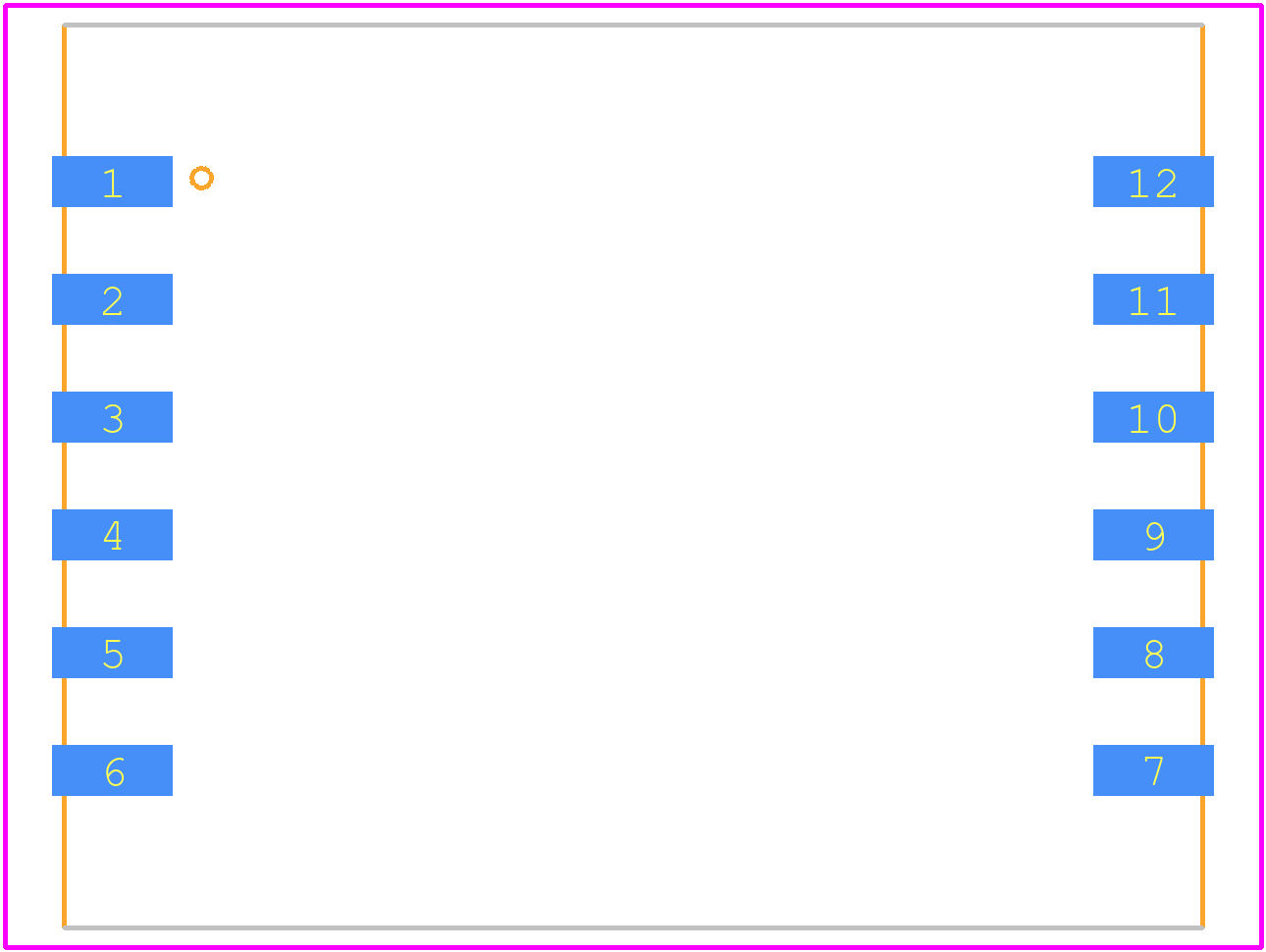

749196521 - Würth Elektronik PCB footprint - Other - Other - WE_EFD20_SMD_12PIN18
click to zoom
3D Models
749196521 - Würth Elektronik - 3D model - Other - WE_EFD20_SMD_12PIN18
click to zoom

749196521 Details

  • Manufacturer Part Number:

    749196521

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Height:

    10.8 mm

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    3

  • Number of Secondary Winding:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Primary Inductance:

    12 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    21 mm

749196521 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 749196521 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model, which can be downloaded from the manufacturer's website.
  • Proper thermal management for the 749196521 can be achieved by following the thermal design guidelines provided in the datasheet, using thermal vias, and ensuring good airflow around the component.
  • The maximum operating temperature range for the 749196521 is typically specified in the datasheet, but it's usually between -40°C to +125°C. However, it's recommended to check the specific datasheet for the exact temperature range.
  • The 749196521 is designed to meet the standard vibration requirements for most industrial and automotive applications. However, it's recommended to check the specific vibration requirements for your application and consult with Wurth Elektronik's technical support if necessary.
  • The recommended soldering process for the 749196521 is typically specified in the datasheet or in Wurth Elektronik's soldering guidelines. It's recommended to follow the recommended soldering profile to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

749196521 Overview

Use the download button to access the 749196521 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74919, or try a keyword search, such as SMPS Transformers
