The maximum operating frequency of the 74ABT08D,112 is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use proper termination and decoupling techniques to reduce noise and reflections.
A simple POR circuit can be implemented using a resistor, capacitor, and diode. The capacitor should be connected between VCC and GND, and the resistor and diode should be connected in series between VCC and the reset pin.
To ensure proper power sequencing, power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This helps prevent latch-up and ensures reliable operation.
The maximum input voltage that can be applied to the 74ABT08D,112 is 5.5V, which is the absolute maximum rating. However, it's recommended to operate the device within the recommended operating conditions for reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74ABT08D,112 Overview

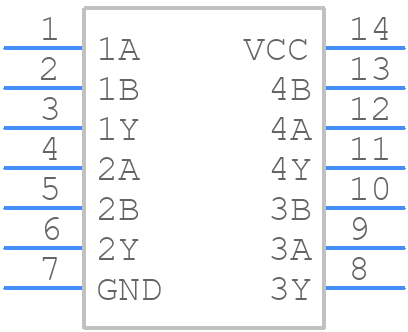

Use the download button to access the 74ABT08D,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ABT,
or try a keyword search, such as Gates
