The recommended operating voltage range for the 74ABT20PW,118 is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.0V to 5.5V, but the performance may vary.
To ensure proper power and decoupling, it's recommended to use a 0.1uF ceramic capacitor between the VCC and GND pins, and a 10uF electrolytic capacitor between the VCC and GND pins, as close to the device as possible. Additionally, use a low-ESR capacitor to minimize power supply noise.
The 74ABT20PW,118 can sink or source a maximum current of 64mA per output, as specified in the datasheet. However, it's essential to consider the total current consumption and ensure that it does not exceed the maximum package power dissipation.
To handle thermal management, ensure that the device is mounted on a PCB with a good thermal conductivity, and that there is adequate airflow around the device. Additionally, consider using a heat sink or thermal pad to dissipate heat, especially in high-power or high-temperature applications.
For optimal performance, it's recommended to use a PCB layout that minimizes signal trace length and impedance, and ensures that the power and ground traces are wide and well-decoupled. Additionally, avoid routing high-speed signals near the device's power and ground pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74ABT20PW,118 Overview

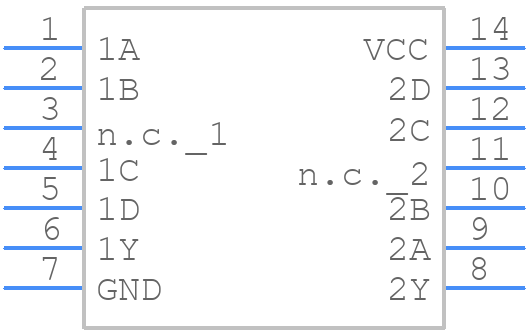

Use the download button to access the 74ABT20PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ABT,
or try a keyword search, such as Gates
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
