Part Image

74AC04SC - onsemi

Description: 74AC04SC, CMOS Hex Inverter 24mA 2 to 6V 14-Pin SOIC

Download 74AC04SC Model

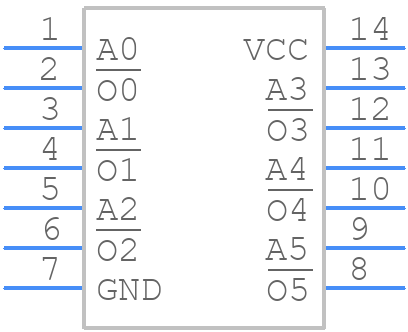

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74AC04SC - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 14LD (SOIC)
click to zoom
3D Models
74AC04SC - onsemi  - 3D model - Small Outline Packages - 14LD (SOIC)
click to zoom
  • Datasheet
  • Stock & Prices $ Price & Stock for 74AC04SC
  • Part Number 74AC04SC
  • Manufacturer onsemi
  • Pin Count 14
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - 14LD (SOIC)
  • Released Date Apr 16, 2015
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

74AC04SC Details

  • Manufacturer Part Number:

    74AC04SC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Manufacturer Package Code:

    751A-03

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    43 Weeks, 5 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    AC

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    10 ns

  • Propagation Delay (tpd):

    10 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AC04SC Overview

Use the download button to access the 74AC04SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AC0, or try a keyword search, such as Gates

Parts related to 74AC04SC

Showing 0 results

74AC04SC Alternates

Showing results

Image Part Number Model
Part Image 74AC04SCX Fairchild Semiconductor Corporation

Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, 0.150 INCH, LEAD FREE, MS-012AB, SOIC-14

Part Image SN74AC04D Texas Instruments

6-ch, 2-V to 6-V inverters 14-SOIC -40 to 85

Part Image MC74AC04DR2G Rochester Electronics LLC

Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, LEAD FREE, SOIC-14

Part Image MC74AC04DR2 Rochester Electronics LLC

Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, SOIC-14

Part Image 74AC04MTR STMicroelectronics

AC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOP-14
