74AC138SC - onsemi

Description: ICC reduced by 50%; Active LOW mutually exclusive outputs; Demultiplexing capability; ACT138 has TTL-compatible inputs; Multiple input enable for easy expansion; Outputs source/sink 24 mA

Download 74AC138SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

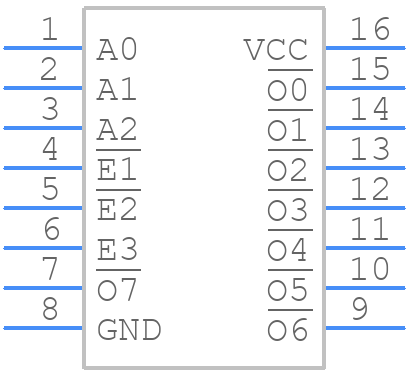

74AC138SC - onsemi - PCB symbol
click to zoom
PCB Footprints
74AC138SC - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - M16A (SOIC)
click to zoom
3D Models
74AC138SC - onsemi - 3D model - Small Outline Packages - M16A (SOIC)
click to zoom

74AC138SC Details

  • Manufacturer Part Number:

    74AC138SC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.05

  • Additional Feature:

    3 ENABLE INPUTS

  • Family:

    AC

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    15 ns

  • Propagation Delay (tpd):

    15 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74AC138SC Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74AC138SC is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, use proper PCB design techniques such as impedance matching, signal routing, and decoupling capacitors. Also, ensure that the power supply is stable and noise-free.
  • The recommended power-on sequence is to apply power to the VCC pin first, followed by the input signals. This helps prevent latch-up and ensures proper device operation.
  • Yes, the 74AC138SC can operate from a 3.3V power supply. However, ensure that the input signals are compatible with the 3.3V logic level, and that the output loads are within the recommended specifications.
  • To handle thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AC138SC Overview

Use the download button to access the 74AC138SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AC1, or try a keyword search, such as Decoder/Drivers
