Part Image

74AC138SCX - onsemi

Description: 74AC138SCX, Decoder, Demultiplexer 74AC, 1-of-8 Inverting 2 → 6 V 16-Pin SOIC

Download ECAD Model
Schematic
symbols

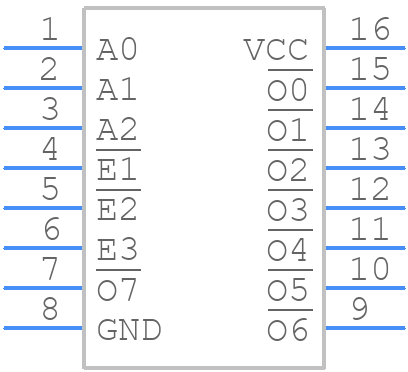

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

74AC138SCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - M16A (SOIC)
click to zoom

3D Models

74AC138SCX - onsemi  - 3D model - Small Outline Packages - M16A (SOIC)
click to zoom

74AC138SCX Details

  • Manufacturer Part Number:

    74AC138SCX

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP, SOP16,.25

  • Manufacturer Package Code:

    751BG

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • Risk Rank:

    0.87

  • Samacsys Modified On:

    2021-10-25 09:39:17

  • YTEOL:

    5

  • Additional Feature:

    3 ENABLE INPUTS

  • Family:

    AC

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OTHER DECODER/DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2/6 V

  • Prop. Delay@Nom-Sup:

    15 ns

  • Propagation Delay (tpd):

    15 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Decoder/Drivers

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Risk Rank: Design Risk

74AC138SCX — onsemi
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

74AC138SCX Overview

Use the download button to access the 74AC138SCX schematic symbol, PCB footprint, and 3D model.
74AC138SCX by onsemi has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like 74AC1, or try a keyword search, such as Decoder/Drivers
