The maximum frequency of operation for the 74AC86SC is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatches, and using termination resistors as needed. Additionally, consider using a low-skew clock distribution network and decoupling capacitors to reduce noise and jitter.
Yes, the 74AC86SC can be used in a 3.3V system, but the output voltage will be reduced to around 3.3V. This may affect the noise margin and signal integrity, so ensure that the receiving devices can tolerate the reduced voltage swing.
To avoid latch-up or other issues during power-up/down sequences, ensure that the power supply voltage (VCC) is applied before the input signals, and that the input signals are stable before the clock signal is applied.
The recommended operating temperature range for the 74AC86SC is -40°C to +85°C. Operating outside this range may affect the device's performance, reliability, and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74AC86SC Overview

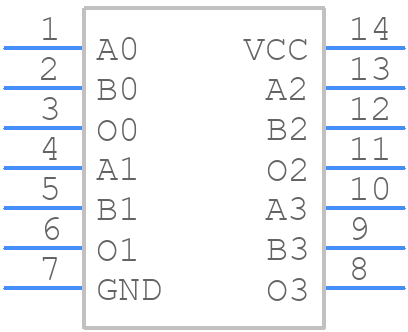

Use the download button to access the 74AC86SC schematic symbol, PCB footprint, and 3D model.
