The maximum frequency of operation for the 74AC86SCX is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as minimizing trace lengths, using controlled impedance, and adding termination resistors as needed. Also, consider using a low-skew clock distribution network and decoupling capacitors to reduce noise.
Yes, the 74AC86SCX can be used in a 3.3V system. However, the power consumption will be higher compared to a 5V system. The typical power consumption at 3.3V is around 20-30 mA, depending on the operating frequency and load conditions.
When interfacing the 74AC86SCX with other logic families, ensure that the input voltage levels are compatible. For example, if connecting to a 5V TTL device, use a level translator or voltage divider to adjust the voltage levels. Also, consider using a buffer or voltage regulator to ensure clean and stable voltage supplies.
The 74AC86SCX has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power consumption for extended periods. Also, consider using a thermal interface material to improve heat transfer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74AC86SCX Overview

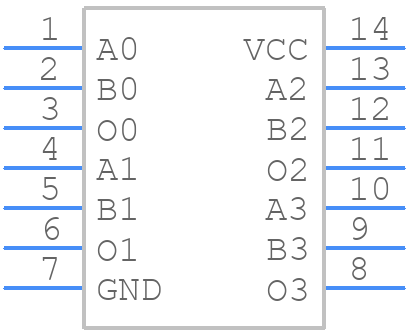

Use the download button to access the 74AC86SCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AC8,
or try a keyword search, such as Gates
