The maximum operating frequency of the 74ACT04MTC is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB design techniques such as impedance matching, signal routing, and decoupling capacitors. Additionally, consider using series termination resistors and/or parallel termination resistors to reduce signal reflections.
The recommended power-on sequence for the 74ACT04MTC is to apply power to the VCC pin first, followed by the input signals. This helps prevent unwanted output transitions during power-up.
Yes, the 74ACT04MTC can be used in a 3.3V system, but it's essential to ensure that the input signals are within the recommended voltage range (VCC - 0.5V to VCC + 0.5V) to maintain proper operation.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. The 74ACT04MTC has a maximum junction temperature of 150°C, so it's essential to keep the device within the recommended operating temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74ACT04MTC Overview

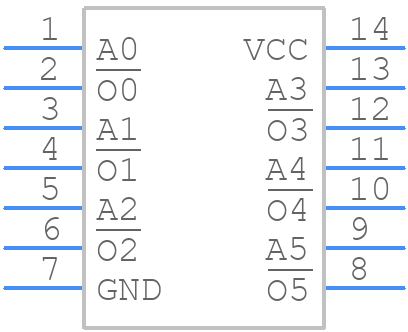

Use the download button to access the 74ACT04MTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ACT,
or try a keyword search, such as Gates
