74ACT138SC - onsemi

Description: Multiple input enable for easy expansion; ACT138 has TTL-compatible inputs; Active LOW mutually exclusive outputs; Outputs source/sink 24 mA; ICC reduced by 50%; Demultiplexing capability

Download 74ACT138SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

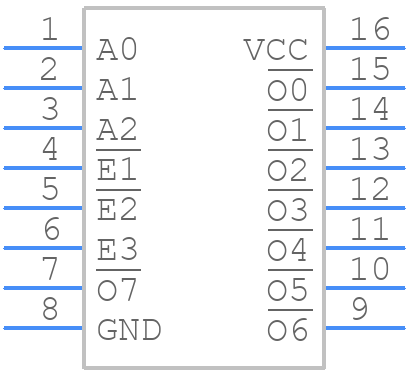

74ACT138SC - onsemi - PCB symbol
click to zoom
PCB Footprints
74ACT138SC - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - M16A (SOIC)
click to zoom
3D Models
74ACT138SC - onsemi - 3D model - Small Outline Packages - M16A (SOIC)
click to zoom

74ACT138SC Details

  • Manufacturer Part Number:

    74ACT138SC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.4

  • Additional Feature:

    3 ENABLE INPUTS

  • Family:

    ACT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    11.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74ACT138SC Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74ACT138SC is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatches, and using termination resistors as needed.
  • Yes, the 74ACT138SC is compatible with 3.3V systems, but ensure that the input voltage does not exceed the maximum rating of 5.5V.
  • The power consumption of the 74ACT138SC depends on the operating frequency and input signals. Typically, it consumes around 20-30 mA at 5V and 10-20 mA at 3.3V.
  • To handle thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
