Please enter a minimum 3 letters or numbers
Technical Content
Part Image

74ACT138SCX - onsemi

Description: Multiple input enable for easy expansion; ACT138 has TTL-compatible inputs; Active LOW mutually exclusive outputs; Outputs source/sink 24 mA; ICC reduced by 50%; Demultiplexing capability

Download 74ACT138SCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

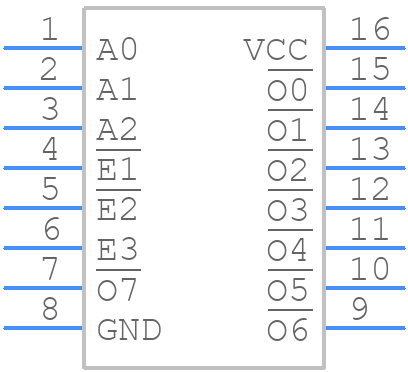

74ACT138SCX - onsemi - PCB symbol
click to zoom
PCB Footprints
74ACT138SCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - M16A (SOIC)
click to zoom
3D Models
74ACT138SCX - onsemi - 3D model - Small Outline Packages - M16A (SOIC)
click to zoom

74ACT138SCX Details

  • Manufacturer Part Number:

    74ACT138SCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751BG

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.4

  • Additional Feature:

    3 ENABLE INPUTS

  • Family:

    ACT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    11.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74ACT138SCX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74ACT138SCX is 4.5V to 5.5V.
  • To ensure proper powering, connect VCC to a stable 5V power supply, and GND to a reliable ground connection. Also, decouple the power supply with a 0.1uF capacitor.
  • The maximum frequency of operation for the 74ACT138SCX is 100 MHz.
  • The enable inputs (E1, E2, E3) are active-low, so connect them to GND to enable the corresponding output. Connect them to VCC to disable the output.
  • The propagation delay for the 74ACT138SCX is typically 10ns, but it can vary depending on the operating conditions and load capacitance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74ACT138SCX Overview

Use the download button to access the 74ACT138SCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ACT, or try a keyword search, such as Decoder/Drivers

Parts related to 74ACT138SCX

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

74ACT138SCX Alternates

Showing results

Image Part Number Model
Part Image CD74ACT138M Rochester Electronics LLC

ACT Series, Inverted Output, CMOS, PDSO16
Part Image CD74ACT138ME4 Texas Instruments

3-LINE TO 8-LINE DECODER, ACT Series, Inverted Output, CMOS, PDSO16
Part Image 74ACT138SCX_NL Fairchild Semiconductor Corporation

3-LINE TO 8-LINE DECODER, ACT Series, CMOS, PDSO16
Part Image CD74ACT138MG4 Texas Instruments

3-LINE TO 8-LINE DECODER, ACT Series, Inverted Output, CMOS, PDSO16
Part Image MC74ACT138DR2 Rochester Electronics LLC

3-LINE TO 8-LINE DECODER, ACT Series, Inverted Output, CMOS, PDSO16
For a full list of alternate parts for 74ACT138SCX, check out Findchips.com
