74AHC595BQ-Q100,11 - Nexperia

Description: 74AHC(T)595-Q100 - 8-bit serial-in/serial-out or parallel-out shift register with output latches@en-us

Download 74AHC595BQ-Q100,11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

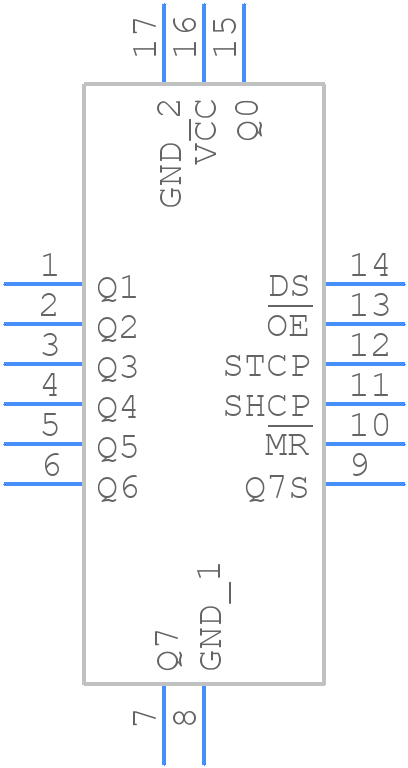

Symbol
74AHC595BQ-Q100,11 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74AHC595BQ-Q100,11 - Nexperia PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DHVQFN16 SOT763-1
click to zoom
3D Models
74AHC595BQ-Q100,11 - Nexperia - 3D model - Quad Flat No-Lead - DHVQFN16 SOT763-1
click to zoom

74AHC595BQ-Q100,11 Details

  • Manufacturer Part Number:

    74AHC595BQ-Q100,11

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    2.50 X 3.50 MM, 0.85 MM HEIGHT, PLASTIC, MO-241, SOT763-1, DHVQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT763-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Count Direction:

    RIGHT

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    20.1 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    2.5 mm

  • fmax-Min:

    90 MHz

74AHC595BQ-Q100,11 Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the 74AHC595BQ-Q100,11 is 100 MHz, but it depends on the operating voltage and load conditions. It's recommended to check the timing characteristics in the datasheet and perform simulations or testing to ensure reliable operation.
  • To ensure that the output signals are not distorted or skewed, it's essential to use a low-impedance output driver, such as a 50-ohm resistor in series with the output pin, and to keep the output traces short and well-terminated. Additionally, using a low-jitter clock source and minimizing noise on the power supply lines can help to reduce signal distortion.
  • Yes, the 74AHC595BQ-Q100,11 is compatible with power supply voltages from 2.0V to 5.5V. However, the output voltage levels and current drive capability may vary depending on the power supply voltage. Be sure to check the datasheet for specific details on output voltage levels and current drive capability at different power supply voltages.
  • To avoid output glitches during power-up and power-down, it's recommended to follow a controlled power-up sequence, where the clock signal is kept low until the power supply has reached a stable level. During power-down, the clock signal should be kept low until the power supply has dropped below a certain threshold. Additionally, using a power-on reset circuit or a reset signal can help to ensure that the shift register is properly initialized.
  • The 74AHC595BQ-Q100,11 is rated for operation from -40°C to +125°C. However, the device's performance and reliability may be affected at high temperatures. Be sure to check the datasheet for specific details on temperature-related specifications and derating factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AHC595BQ-Q100,11 Overview

Use the download button to access the 74AHC595BQ-Q100,11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AHC, or try a keyword search, such as Shift Registers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
