Part Image

74AHCT123APW,118 - Nexperia

Description: 74AHC(T)123A - Dual retriggerable monostable multivibrator with reset@en-us

Download 74AHCT123APW,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

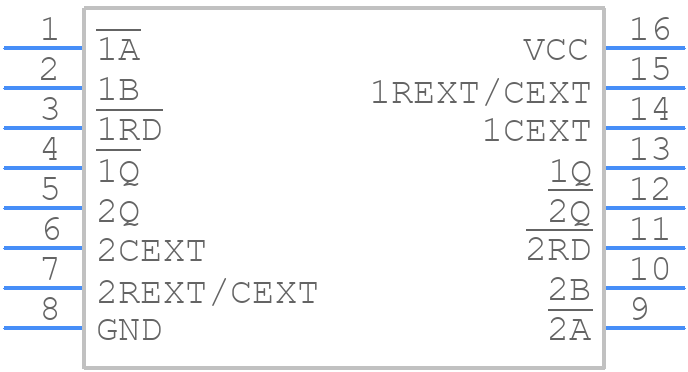

Symbol
74AHCT123APW,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74AHCT123APW,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT403-1
click to zoom
3D Models
74AHCT123APW,118 - Nexperia - 3D model - Small Outline Packages - SOT403-1
click to zoom

74AHCT123APW,118 Details

  • Manufacturer Part Number:

    74AHCT123APW,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 MM, PLASTIC, MO-153, SOT403-1, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT403-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.45

  • Family:

    AHCT/VHCT/VT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    17.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74AHCT123APW,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AHCT123APW,118 is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
  • The 74AHCT123APW,118 has a thermal resistance of 55°C/W (junction-to-ambient) and 15°C/W (junction-to-case). To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB design guidelines for thermal dissipation.
  • The maximum clock frequency supported by the 74AHCT123APW,118 is 100 MHz, as specified in the datasheet. However, the actual clock frequency may vary depending on the system design and operating conditions.
  • While the 74AHCT123APW,118 is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but its performance may be degraded, and the output voltage levels may not meet the required specifications.
  • To ensure EMC with the 74AHCT123APW,118, follow proper PCB design guidelines, use shielding and grounding techniques, and ensure that the device is properly decoupled from the power supply. Additionally, consider using electromagnetic interference (EMI) filters or common-mode chokes if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AHCT123APW,118 Overview

Use the download button to access the 74AHCT123APW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AHC, or try a keyword search, such as Prescaler/Multivibrators

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
