74ALVT16244DGG,112 - Nexperia

Description: 74ALVT16244 - 16-bit buffer/driver; 3-state@en-us

Download 74ALVT16244DGG,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

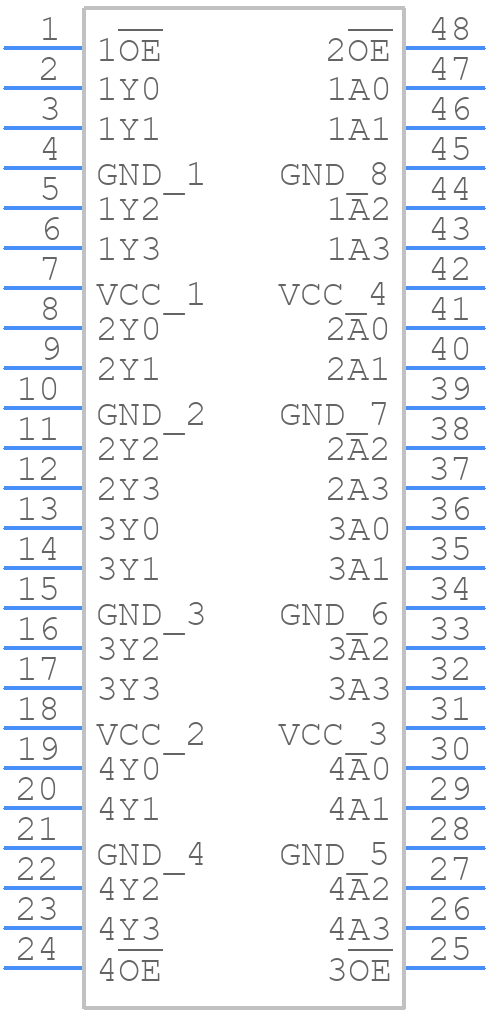

74ALVT16244DGG,112 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74ALVT16244DGG,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT362-1
click to zoom
3D Models
74ALVT16244DGG,112 - Nexperia - 3D model - Small Outline Packages - SOT362-1
click to zoom

74ALVT16244DGG,112 Details

  • Manufacturer Part Number:

    74ALVT16244DGG,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, TSSOP2-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SOT362-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES FROM 3V TO 3.6V SUPPLY

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ALVT

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.064 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    5 mA

  • Prop. Delay@Nom-Sup:

    3.5 ns

  • Propagation Delay (tpd):

    3.5 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

74ALVT16244DGG,112 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74ALVT16244DGG,112 is 2.3V to 3.6V, as specified in the datasheet. However, it's recommended to operate the device within the range of 2.5V to 3.3V for optimal performance and to ensure compatibility with most systems.
  • The 74ALVT16244DGG,112 has a thermal resistance of 55°C/W (junction-to-ambient) and 10°C/W (junction-to-case). To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the PCB, and to keep the device away from other heat sources. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components or obstacles.
  • The maximum current rating for the 74ALVT16244DGG,112 is 64mA per output, as specified in the datasheet. However, it's recommended to derate the current to 32mA per output for high-reliability applications or when operating at high temperatures.
  • To ensure signal integrity when using the 74ALVT16244DGG,112, it's recommended to use a low-impedance PCB design, keep the signal traces short and away from noise sources, and use termination resistors or capacitors as needed. Additionally, ensure that the power supply is clean and stable, and that the device is operated within its recommended operating conditions.
  • The 74ALVT16244DGG,112 is not compatible with 5V systems, as it's designed to operate at a maximum voltage of 3.6V. Operating the device at 5V may cause damage or malfunction. If you need to interface with a 5V system, consider using a level translator or a voltage regulator to step down the voltage to a compatible level.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74ALVT16244DGG,112 Overview

Use the download button to access the 74ALVT16244DGG,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ALV, or try a keyword search, such as Bus Driver/Transceivers
