74ALVT16543DL,118 - NXP

74ALVT16543DL,118 Details

• Manufacturer Part Number:

  74ALVT16543DL,118

• Source Url Status Check Date:

  2013-06-14 00:00:00

• Brand Name:

  NXP Semiconductor

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

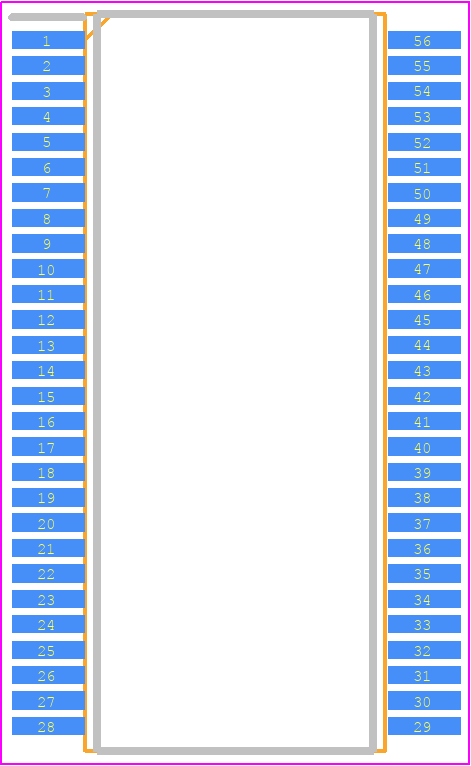

  7.50 MM, PLASTIC, MO-118, SOT-371-1, SSOP-56

• Pin Count:

  56

• Manufacturer Package Code:

  SOT371-1

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 3.3V

• Control Type:

  INDEPENDENT CONTROL

• Count Direction:

  BIDIRECTIONAL

• Family:

  ALVT

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e4

• Length:

  18.425 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  REGISTERED BUS TRANSCEIVER

• Max I(ol):

  0.024 A

• Number of Bits:

  8

• Number of Functions:

  2

• Number of Ports:

  2

• Number of Terminals:

  56

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Prop. Delay@Nom-Sup:

  5.1 ns

• Propagation Delay (tpd):

  5.9 ns

• Seated Height-Max:

  2.8 mm

• Supply Voltage-Max (Vsup):

  2.7 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
