74ALVT16823DL,512 - Nexperia

74ALVT16823DL,512 Details

• Manufacturer Part Number:

  74ALVT16823DL,512

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  7.50 MM, PLASTIC, MO-118, SOT-371-1, SSOP-56

• Pin Count:

  56

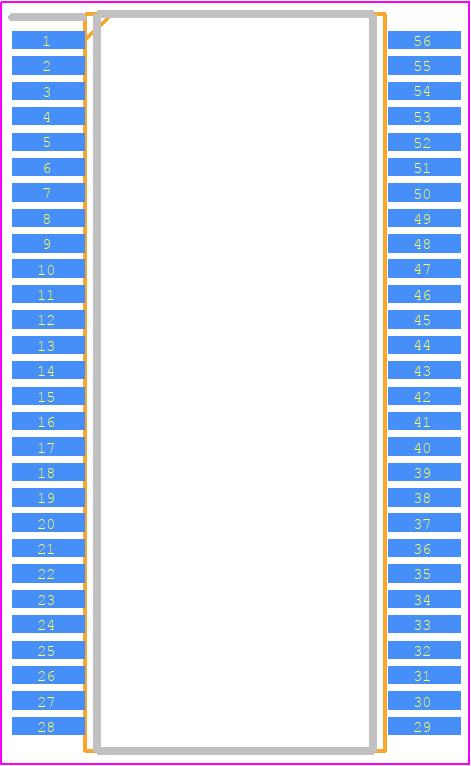

• Manufacturer Package Code:

  SOT371-1

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1995-09-27

• Manufacturer:

  Nexperia

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES FROM 3V TO 3.6V SUPPLY

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  ALVT

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e4

• Length:

  18.425 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.064 A

• Moisture Sensitivity Level:

  2

• Number of Bits:

  9

• Number of Functions:

  2

• Number of Ports:

  2

• Number of Terminals:

  56

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  5 mA

• Prop. Delay@Nom-Sup:

  3.1 ns

• Propagation Delay (tpd):

  4.5 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.8 mm

• Supply Voltage-Max (Vsup):

  2.7 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.5 mm
