74AUP1G57GW,125 - Nexperia

Description: 74AUP1G57 - Low-power configurable multiple function gate@en-us

Download 74AUP1G57GW,125 Model

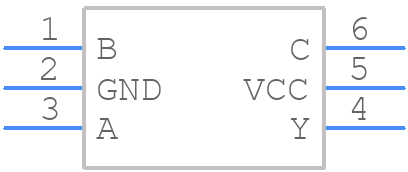

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74AUP1G57GW,125 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT363-2
click to zoom
3D Models
74AUP1G57GW,125 - Nexperia  - 3D model - SOT23 (6-Pin) - SOT363-2
click to zoom

74AUP1G57GW,125 Details

  • Manufacturer Part Number:

    74AUP1G57GW,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, SOT-363, SC-88, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • Family:

    AUP/ULP/V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

74AUP1G57GW,125 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AUP1G57GW,125 is 0.8 V to 3.6 V.
  • To ensure proper power supply, connect the VCC pin to a stable voltage source within the recommended operating range, and decouple the power supply with a 100 nF capacitor.
  • The maximum current rating for the 74AUP1G57GW,125 is 32 mA per output pin.
  • To handle ESD protection, ensure that the device is handled and stored in an ESD-protected environment, and use ESD-protective packaging and handling procedures.
  • The thermal resistance (Rth(j-a)) of the 74AUP1G57GW,125 is 250 K/W.
